12mm Ceramic shoulder/slot milling cutters MC275-12.0E4P100-WIS10

12mm Ceramic shoulder/slot milling cutters MC275-12.0E4P100-WIS10

€

117.90

EX VAT

€

145.02

INC VAT

Walter Prototyp

Ceramic shoulder/slot milling cutters MC275 • ConeFit • κ=90° • metric • Dc=12mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

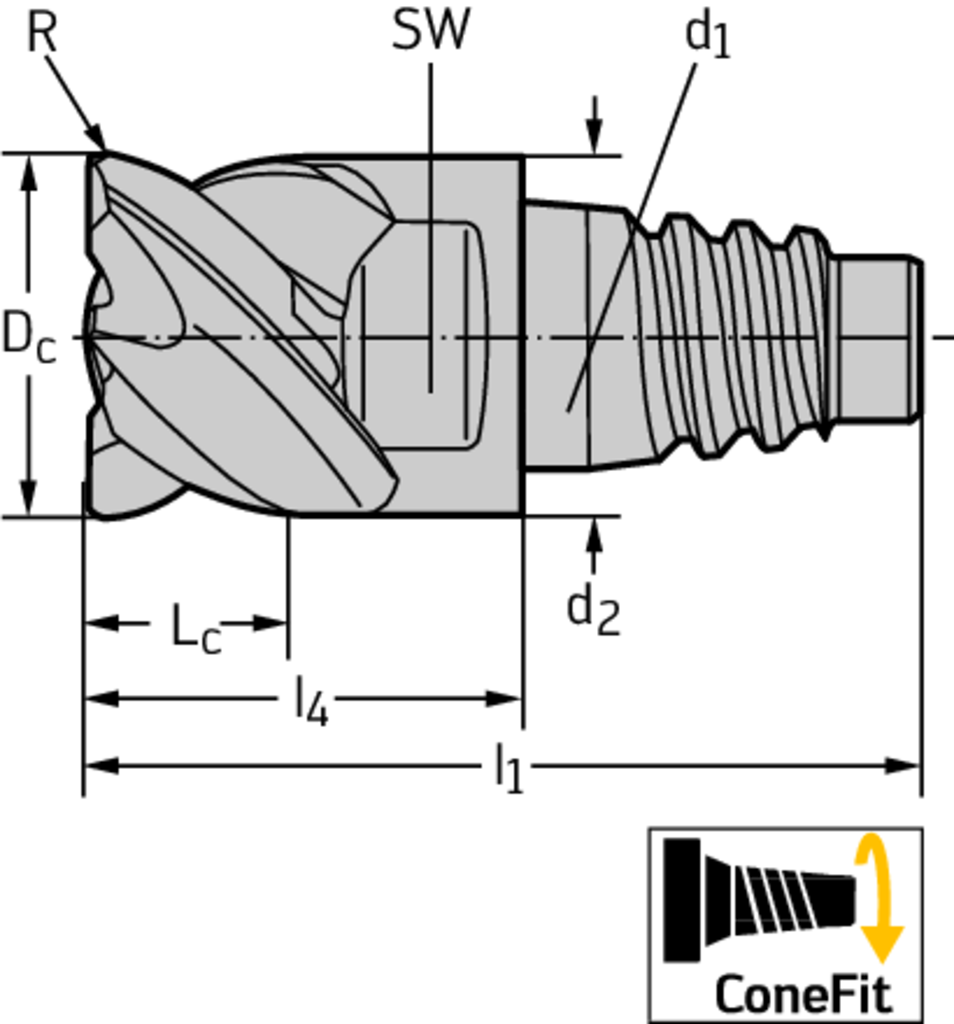

PRODUCT ATTRIBUTES

Tool designation (Designation) MC275-12.0E4P100-WIS1

Cutting edge diameter (D c) 12 mm

Corner radius (r) 1 mm

Cutting edge length (L c) 7 mm

Neck diameter (d 2) 11,7 mm

Overall length (l 1) 32,6 mm

Functional length (l 4) 18,8 mm

Wrench size (SW) 10 mm

Shank diameter (d 1) E12 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Ceramic shoulder/slot milling cutters MC275 • ConeFit • κ=90° • metric • Dc=12mm • Z=4

Article number (J21):

MC275-12.0E4P100-WIS10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12 mm

Neck diameter (A5):

11,7 mm

Depth of cut maximum (B2):

2 mm

Protruding length (B3):

18,8 mm

Overall length (B5):

32,6 mm

Functional length (B71):

18,8 mm

Neck length (B9):

18,8

Connection code type machine side (C11):

SAC

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

120

Connection diameter machine side (C3):

11,7 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,031 kg

Rake angle radial (E2):

-8 ÃÂÃÂ°
