16mm PCD shoulder milling cutters MP260-016T02P WDN20

16mm PCD shoulder milling cutters MP260-016T02P WDN20

€

754.00

EX VAT

€

927.42

INC VAT

Walter

PCD shoulder milling cutters MP260 • metric • ScrewFit • flute helix angle 4° • centre cutting capability • WDN20 • Dc=16mm • R=0,2mm • Z=2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

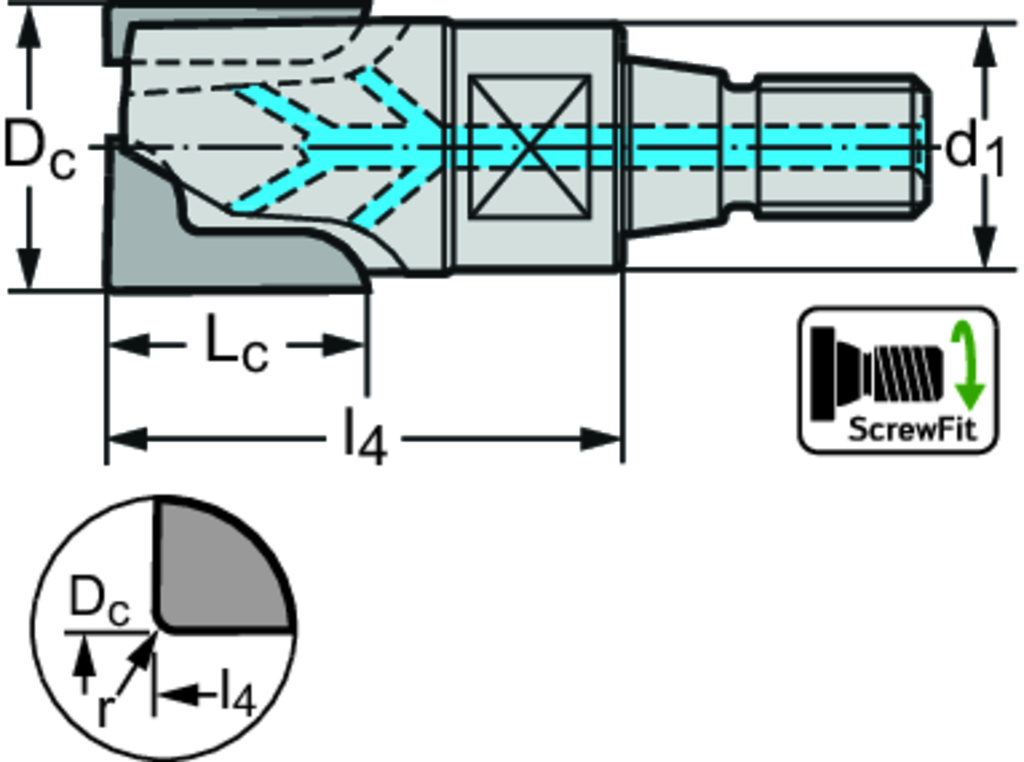

Tool designation (Designation) MP260-016T02P WDN20

Cutting edge diameter (D c) 16 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 15 mm

Overall length (l 1) 48 mm

Functional length (l 4) 30 mm

Shank diameter (d 1) T14 mm

Number of teeth (Z) 2

weight of item 0 kg

Insert Shape MP

DESCRIPTION & FEATURES

PCD shoulder milling cutters MP260 • metric • ScrewFit • flute helix angle 4° • centre cutting capability • WDN20 • Dc=16mm • R=0,2mm • Z=2

Article number (J21):

MP260-016T02P WDN20

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

16 mm

Neck diameter (A5):

14,5 mm

Depth of cut maximum (B2):

15 mm

Protruding length (B3):

30 mm

Overall length (B5):

48 mm

Functional length (B71):

30 mm

Neck length (B9):

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

140

Connection diameter machine side (C3):

14,5 mm

Rotational speed maximum (D6):

70000 1/min

Weight of item (D7):

0,036 kg

Rake angle radial (E2):

0 ÃÂ°
