20mm PCD shoulder milling cutters MP260-020A03P WDN20

20mm PCD shoulder milling cutters MP260-020A03P WDN20

€

1,007.00

EX VAT

€

1,238.61

INC VAT

Walter

PCD shoulder milling cutters MP260 • metric • Parallel shank • flute helix angle 4° • centre cutting capability • WDN20 • Dc=20mm • R=0,2mm • Z=3

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

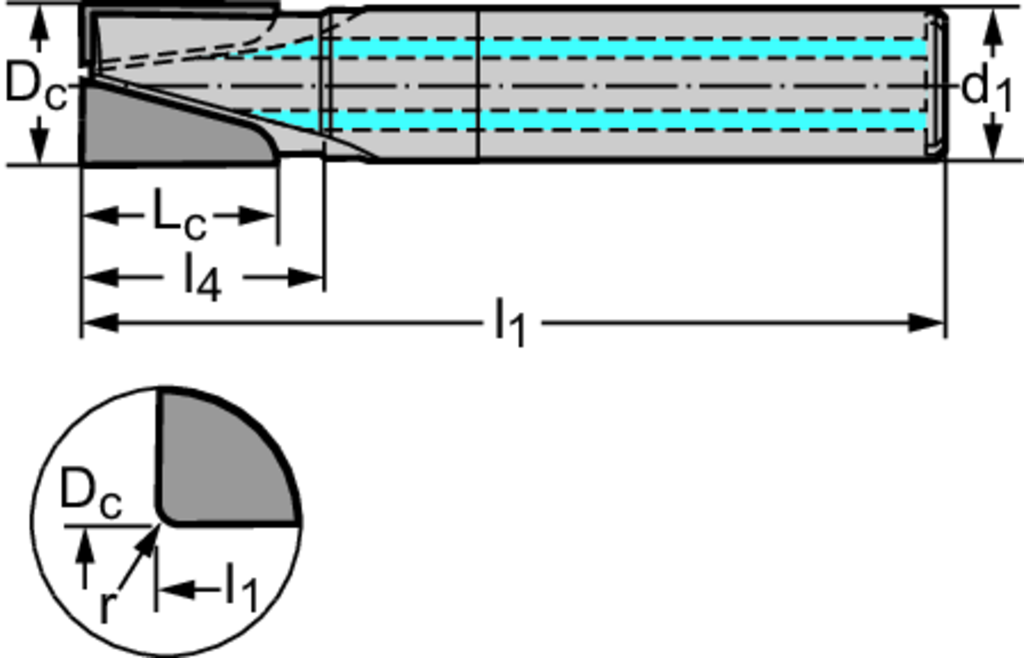

Tool designation (Designation) MP260-020A03P WDN20

Cutting edge diameter (D c) 20 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 20 mm

Overall length (l 1) 100 mm

Functional length (l 4) 49 mm

Shank diameter (d 1) 20 mm

Number of teeth (Z) 3

weight of item 0,4 kg

Insert Shape MP

DESCRIPTION & FEATURES

PCD shoulder milling cutters MP260 • metric • Parallel shank • flute helix angle 4° • centre cutting capability • WDN20 • Dc=20mm • R=0,2mm • Z=3

Article number (J21):

MP260-020A03P WDN20

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

20 mm

Neck diameter (A5):

19 mm

Depth of cut maximum (B2):

20 mm

Protruding length (B3):

49 mm

Overall length (B5):

100 mm

Functional length (B71):

100 mm

Neck length (B9):

48,5

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

200

Connection diameter machine side (C3):

20 mm

Shank length (C4):

50 mm

Rotational speed maximum (D6):

55000 1/min

Weight of item (D7):

0,4 kg
