45° turning tools – Rigid clamping C...-DVMN C8-DVMNL-00160-16

45° turning tools – Rigid clamping C...-DVMN C8-DVMNL-00160-16

€

534.00

EX VAT

€

656.82

INC VAT

Walter

45° turning tools – Rigid clamping C...-DVMN C8-DVMNL-00160-16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

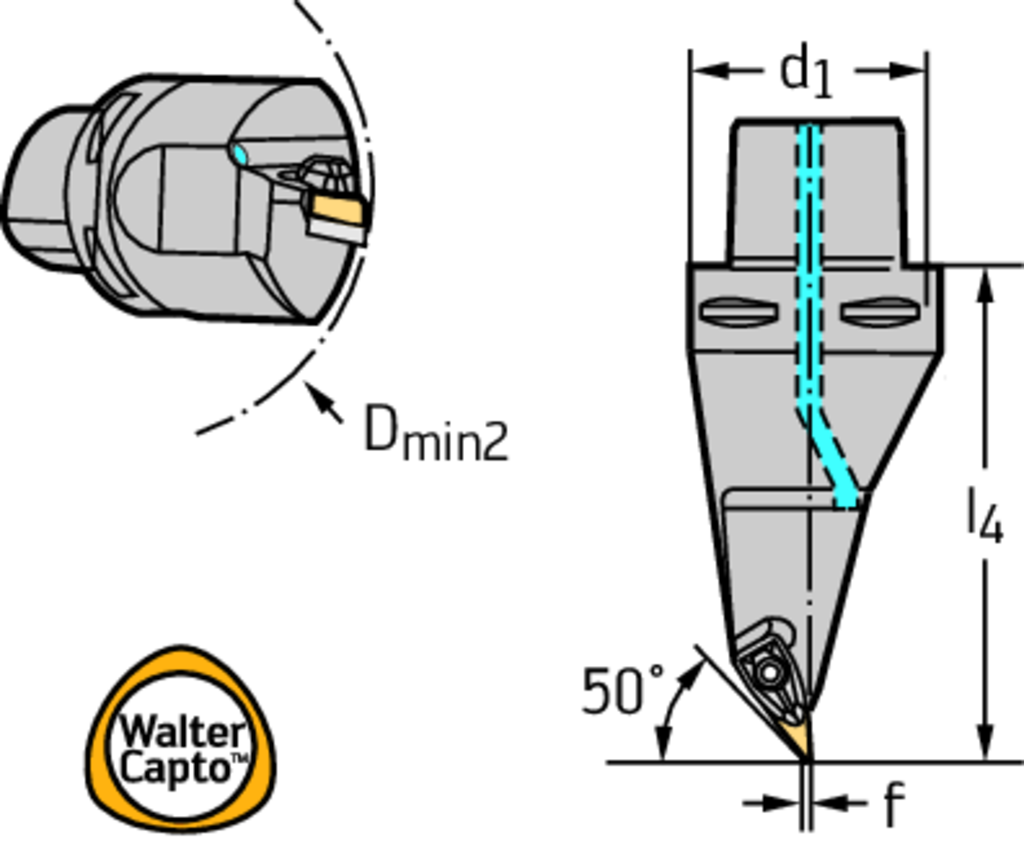

PRODUCT ATTRIBUTES

Tool designation (Designation) C8-DVMNL-00160-16

Connection size code (d 1) C8

Functional width (f) 0,9 mm

Functional length (l 4) 160 mm

Minimum hole diameter (D min2) 110 mm

Orthogonal rake angle (γ) -4 Deg

Inclination angle (λ s) -14 Deg

Insert Shape C.

DESCRIPTION & FEATURES

45° turning tools – Rigid clamping C...-DVMN • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=95° • Left • C8 • rhombic insert • VN .. 1604 ..

Article number (J21):

C8-DVMNL-00160-16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

16,5 mm

Functional width (A2):

0,9 mm

Functional length (A3):

160 mm

Functional height (A4):

0 mm

Protruding length (B3):

208 mm

Overall length (B5):

208 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Weight of item (D7):

3,83 kg

Tool cutting edge angle (E1):

95 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

35 °

Rake angle orthogonal (E4):

-4 °

Inclination angle (E5):

-14 °

Cutting direction (F1):

Left

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Master insert identification (J42):

VNMG 16 04 08

Data chip provision (J7):

Insert Type:

VN .. 1604 ..
