45° turning tools – Rigid clamping C... C5-DCMNN-00105-1245° turning tools – Rigid clamping C... C5-DCMNN-00105-12
45° turning tools – Rigid clamping C... C5-DCMNN-00105-12 45° turning tools – Rigid clamping C... C5-DCMNN-00105-12

45° turning tools – Rigid clamping C... C5-DCMNN-00105-12

€
353.00
EX VAT
€
434.19
INC VAT
Walter
45° turning tools – Rigid clamping C... C5-DCMNN-00105-12
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

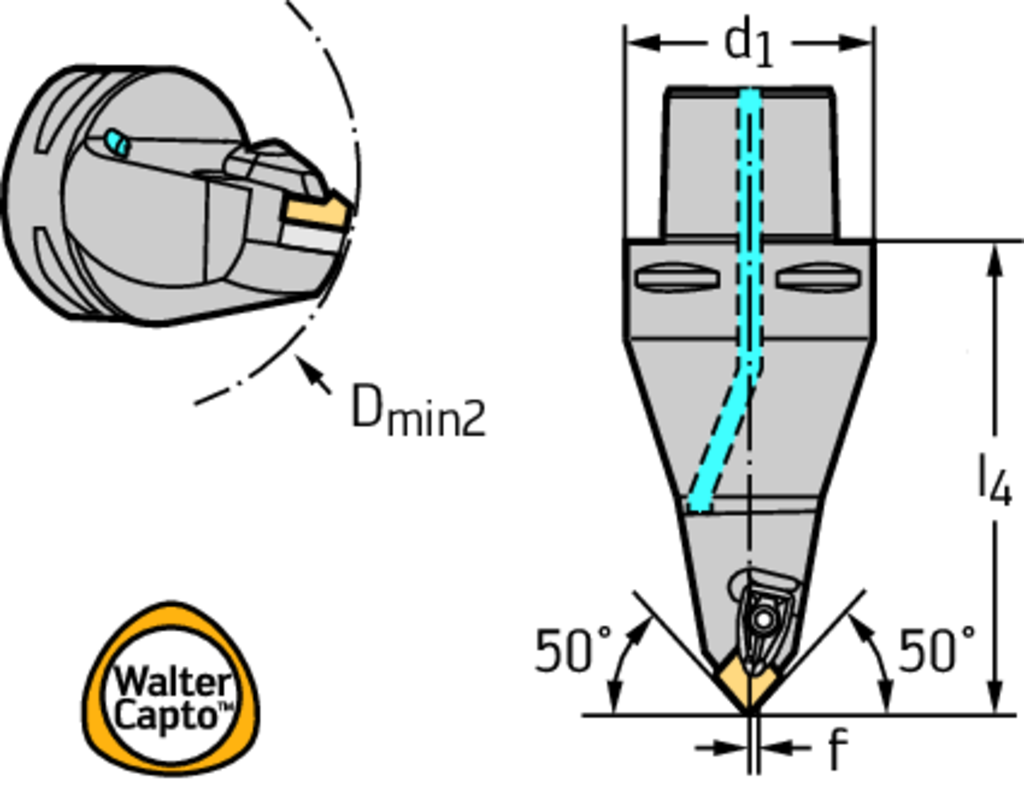

Tool designation (Designation) C5-DCMNN-00105-12
Connection size code (d 1) C5
Functional width (f) 0,3 mm
Functional length (l 4) 105 mm
Minimum hole diameter (D min2) 110 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape C.
DESCRIPTION & FEATURES
45° turning tools – Rigid clamping C...-DCMN • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=95° • neutral • C5 • rhombic insert • CN .. 1204 ..
Article number (J21):
C5-DCMNN-00105-12
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
8
Cutting edge length (A1):
12,9 mm
Functional width (A2):
0,3 mm
Functional length (A3):
105 mm
Functional height (A4):
0 mm
Protruding length (B3):
135 mm
Overall length (B5):
135 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Weight of item (D7):
1,134 kg
Tool cutting edge angle (E1):
95 °
Tool cutting edge angle type code (E2):
B
Insert included angle (E3):
80 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Neutral
Clamping type code (F5):
D
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Standard (J1):
ISO26623-1
Master insert identification (J42):
CNMG 12 04 08
Data chip provision (J7):
0
Insert Type:
CN .. 1204 ..
