45° turning tools – Screw clamping C... C6-SCMCN-00090-12

45° turning tools – Screw clamping C... C6-SCMCN-00090-12

€

409.00

EX VAT

€

503.07

INC VAT

Walter

45° turning tools – Screw clamping C... C6-SCMCN-00090-12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

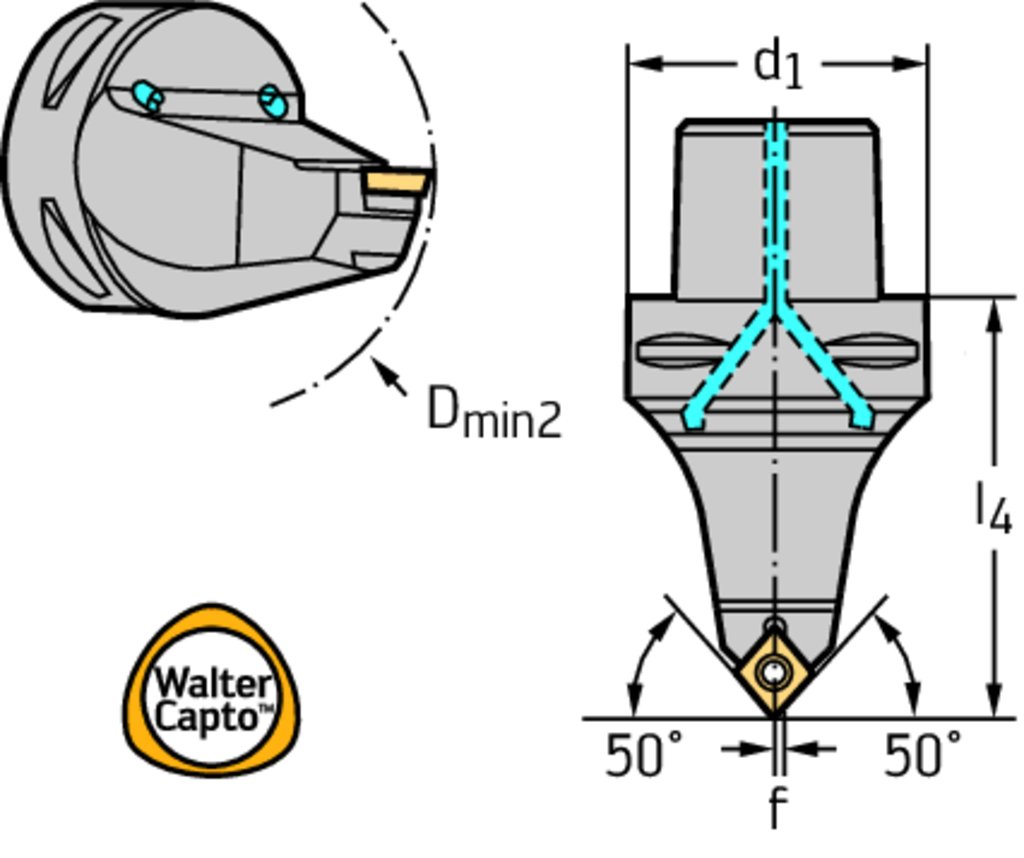

Tool designation (Designation) C6-SCMCN-00090-12

Connection size code (d 1) C6

Functional width (f) 0,6 mm

Functional length (l 4) 90 mm

Minimum hole diameter (D min2) 100 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) 0 Deg

Insert Shape C.

DESCRIPTION & FEATURES

45° turning tools – Screw clamping C...-SCMC • Walter Turn • metric • Walter Capto^TM ISO 26623 • κ=95° • neutral • C6 • rhombic insert • CC .. 1204 ..

Article number (J21):

C6-SCMCN-00090-12

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

12,9 mm

Functional width (A2):

0,6 mm

Functional length (A3):

90 mm

Functional height (A4):

0 mm

Protruding length (B3):

128 mm

Overall length (B5):

128 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0630

Weight of item (D7):

1,349 kg

Tool cutting edge angle (E1):

95 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

80 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Neutral

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Master insert identification (J42):

CCMT 12 04 08

Data chip provision (J7):

Insert Type:

CC .. 1204 ..
