90° solid carbide chamfer mill H1E58318-E10-10

90° solid carbide chamfer mill H1E58318-E10-10

90° solid carbide chamfer mill H1E58318-E10-10

90° solid carbide chamfer mill H1E58318-E10-10

90° solid carbide chamfer mill H1E58318-E10-10

€

42.03

EX VAT

€

51.70

INC VAT

Walter Prototyp

90° solid carbide chamfer mill H1E58318-E10-10

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

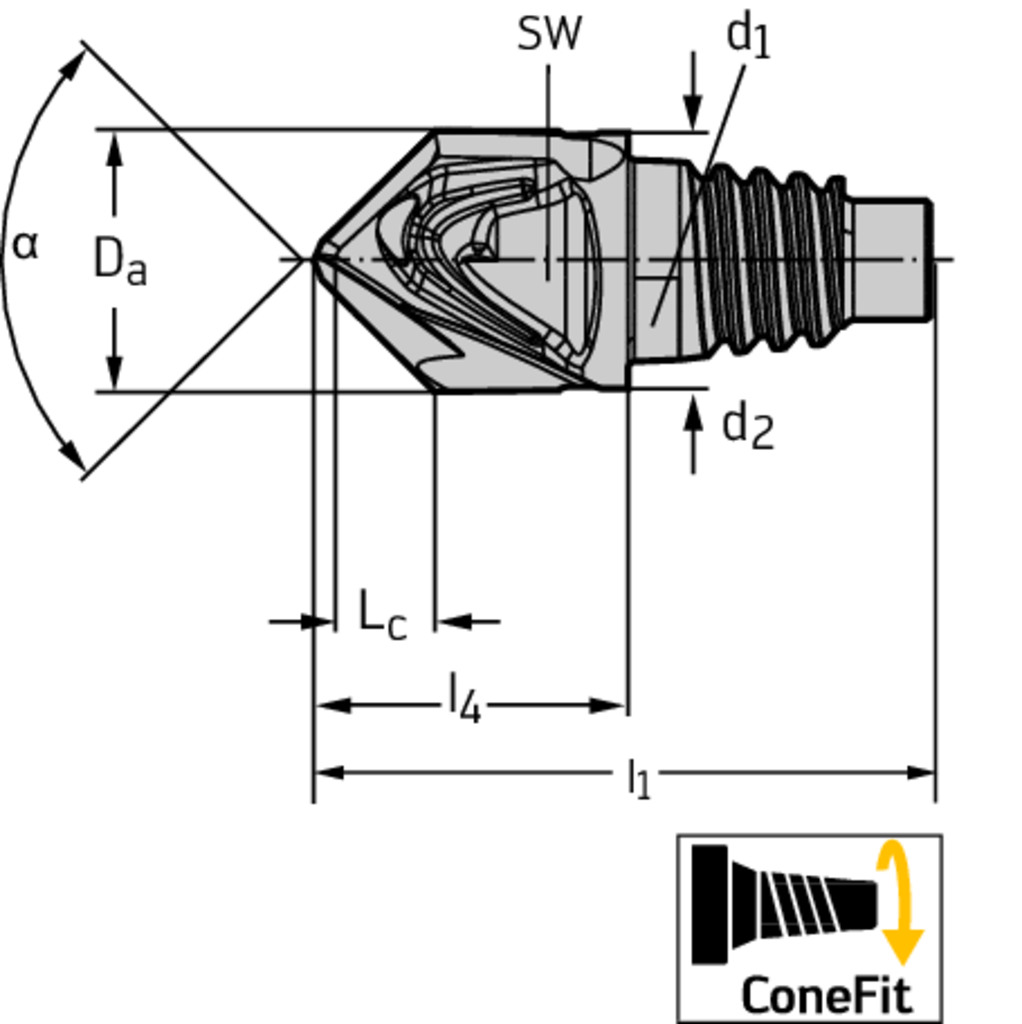

Tool designation (Designation) H1E58318-E10-10

Maximum cutting diameter (D a) 10 mm

Cutting edge length (L c) 4,23 mm

Neck diameter (d 2) 9,7 mm

Overall length (l 1) 23 mm

Maximum projection length (l 4) 11,8 mm

Wrench size (SW) 6 mm

Connection diameter (d 1) E10 mm

Clearance angle major (α) 90 Deg

Number of teeth (Z) 2

Insert Shape H1

DESCRIPTION & FEATURES

90° solid carbide chamfer mill H1E58318 • Protostar • metric • ConeFit • Dc=1,5mm • Z=2

Article number (J21):

H1E58318-E10-10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

W

Tool style code (BLD):

3

Cutting diameter (A1):

1,5 mm

Cutting diameter maximum (A2):

10 mm

Body diameter (A3):

9,7 mm

Neck diameter (A5):

9,7 mm

Depth of cut maximum (B2):

4,23 mm

Protruding length (B3):

11,8 mm

Overall length (B5):

23 mm

Functional length (B71):

11,8 mm

Connection code type machine side (C11):

SAC

Connection code form at machine side (C12):

04

Connection code unit base machine side (C14):

8

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

9,7 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,015 kg

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

10 °

Rake angle axial (E3):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

2

Face effective cutting edge count (F22):

2

Flute helix hand (F3):

N

Flute helix angle (F4):

10 °

Coolant entry style code (H21):

0

Coolant exit style code (H22):

0

Grade manufacturer's designation (H3):

TAX

Body material code (H4):

H

Coating (H5):

TiAlN

Standard (J1):

PWZ-NORM

Data chip provision (J7):

0
