Adaptor for drilling and reaming tools C. C5-391.27-20 060Adaptor for drilling and reaming tools C. C5-391.27-20 060
Adaptor for drilling and reaming tools C. C5-391.27-20 060 Adaptor for drilling and reaming tools C. C5-391.27-20 060

Adaptor for drilling and reaming tools C. C5-391.27-20 060

€
349.00
EX VAT
€
429.27
INC VAT
Walter
Adaptor for drilling and reaming tools C. C5-391.27-20 060
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

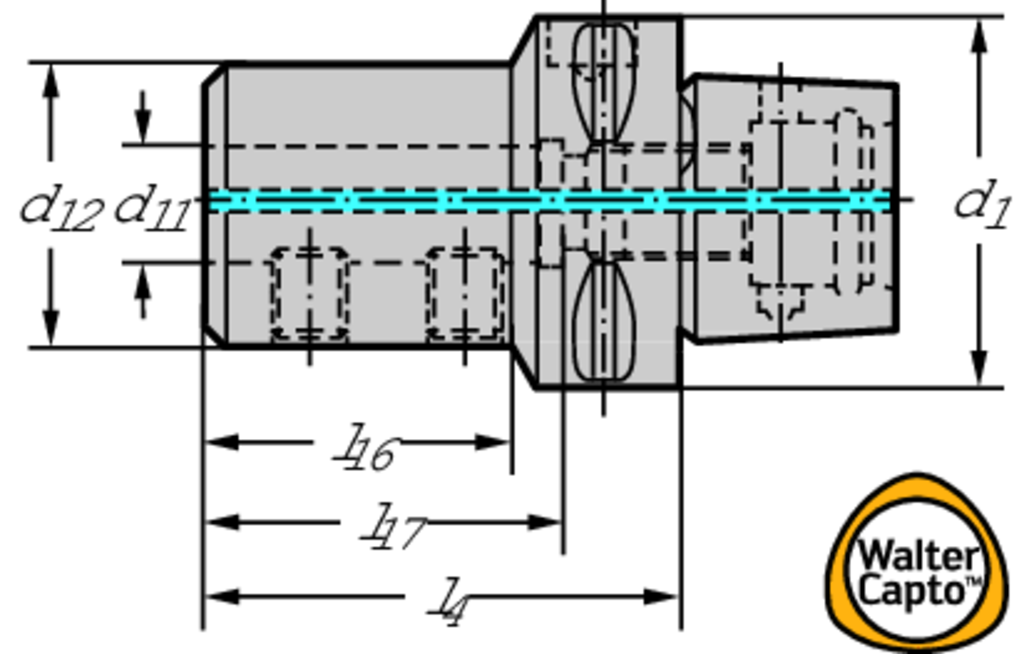

PRODUCT ATTRIBUTES
Tool designation (Designation) C5-391.27-20 06
Connection size code (d 1) C5
connection diameter (d 11) 20 mm
Body diameter (d 12) 40 mm
Functional length (l 4) 60 mm
Useable length (l 16) 37,7 mm
Clamping diameter depth (l 17) 51,5 mm
weight of item 0,75 kg
Insert Shape C.
DESCRIPTION & FEATURES
Adaptor for drilling and reaming tools C.-391.27 • metric • For drilling and reaming tools with shank design • ISO 26623 • d1=C5 • d11=20
Article number (J21):
C5-391.27-20 060
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
40 mm
Body length 1 (B1):
37,7 mm
Protruding length (B3):
60 mm
Overall length (B4):
90 mm
Functional length (B71):
60 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Connection diameter machine side (C3):
50 mm
Shank length (C4):
30 mm
Connection code type workpiece side (C51):
ZYL
Connection code form at workpiece side (C52):
11
Connection code unit base workpiece side (C54):
1
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0200
Connection diameter min (C71):
20 mm
Rotational speed maximum (D6):
28000 1/min
Weight of item (D7):
0,752 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Standard (J1):
ISO26623-1
Data chip provision (J7):
0
