ANSI ASME B5.50 master A100M.U3.40.040.40ANSI ASME B5.50 master A100M.U3.40.040.40
ANSI ASME B5.50 master A100M.U3.40.040.40 ANSI ASME B5.50 master A100M.U3.40.040.40

ANSI ASME B5.50 master A100M.U3.40.040.40

€
287.00
EX VAT
€
353.01
INC VAT
Walter
ANSI ASME B5.50 master A100M.U3.40.040.40
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

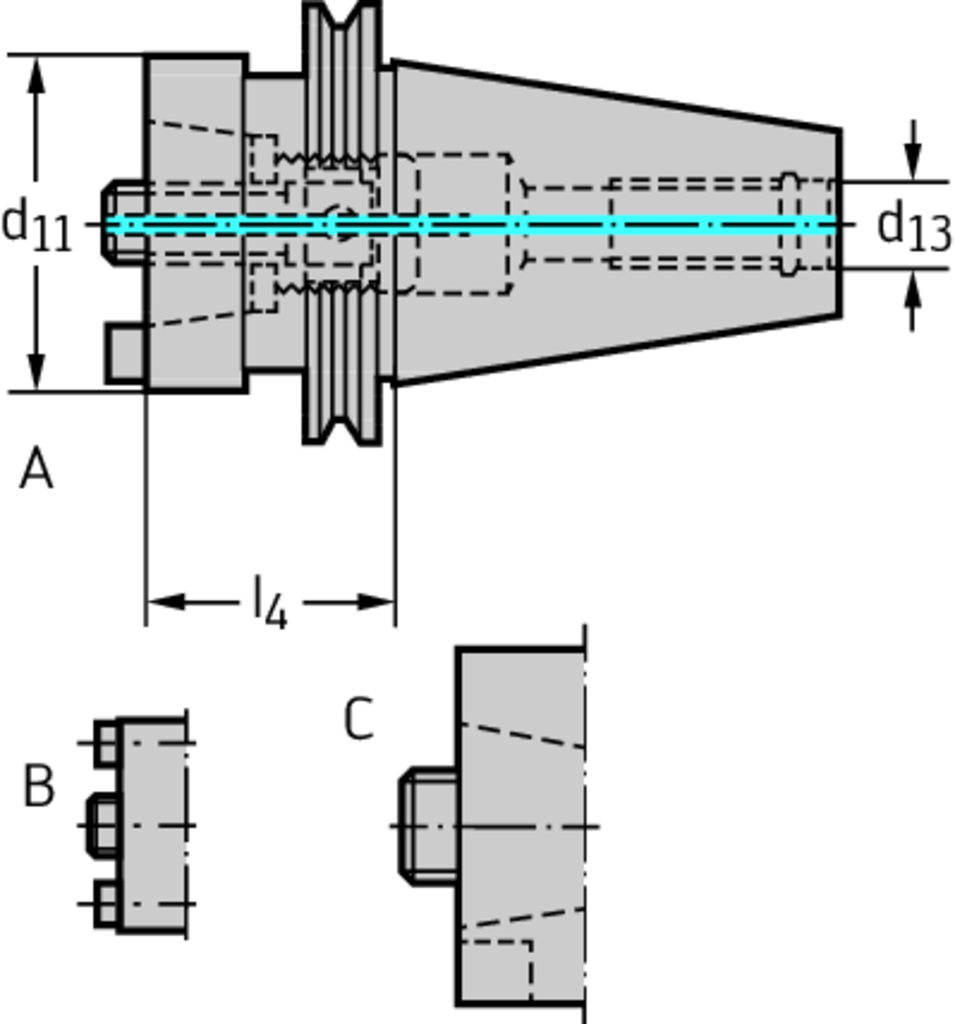

Tool designation (Designation) A100M.U3.40.040.4
Connection size code (d 1) CAT40
Connection diameter (d 11) NCT 40
Functional length (l 4) 40,005 mm
Pull stud, thread size (d 13) 5/8"-11 mm
Version C
weight of item 0,72 kg
Insert Shape A1
DESCRIPTION & FEATURES
ANSI ASME B5.50 master A100M.U3 • inch • Modular NCT adaptor • d1=40 • d11=40
Article number (J21):
A100M.U3.40.040.40
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
40 mm
Body diameter 2 (A2):
44,5 mm
Flange diameter (A4):
63,5 mm
Body length 1 (B1):
0,5 mm
Length 2 (B2):
20,9 mm
Protruding length (B3):
40,005 mm
Overall length (B4):
108,405 mm
Functional length (B71):
40,005 mm
Connection code type machine side (C11):
SKG
Connection code form at machine side (C12):
31
Connection thread nominal size machine side (C13):
5/8"-11
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Shank length (C4):
68,4 mm
Connection code type workpiece side (C51):
NCT
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0400
Rotational speed maximum (D6):
12000 1/min
Weight of item (D7):
0,72 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Standard (J1):
DIN 4000-89 KENNZAHL
Standard letter to the standard number (J11):
C
Data chip provision (J7):
0
