ASME B5.50 hydraulic expansion chuck AK182.CAT AK182.CAT50.081.32

ASME B5.50 hydraulic expansion chuck AK182.CAT AK182.CAT50.081.32

€

511.00

EX VAT

€

628.53

INC VAT

Walter

ASME B5.50 hydraulic expansion chuck AK182.CAT AK182.CAT50.081.32

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

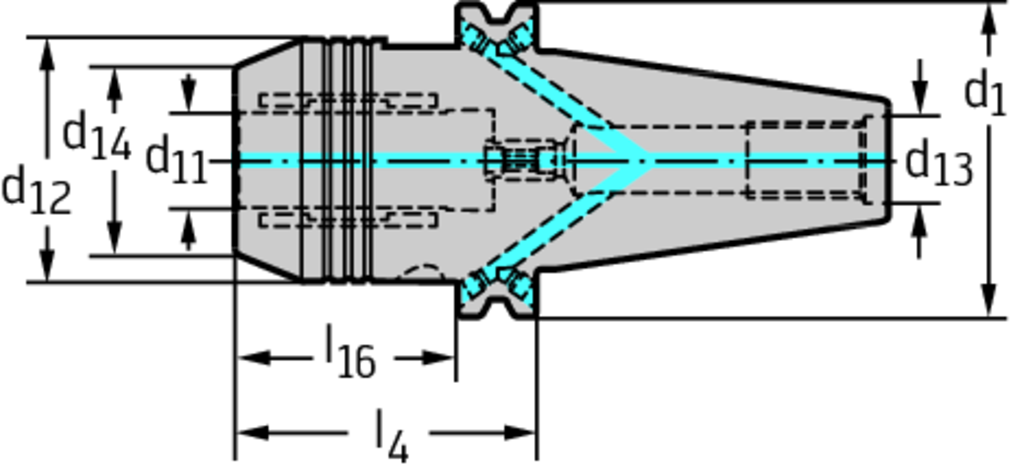

Tool designation (Designation) AK182.CAT50.081.32

Connection size code (d 1) CAT50

Connection diameter (d 11) 32 inch

Body diameter (d 12) 2,835 inch

Connection diameter (d 14) 2,303 inch

Maximum projection length (l 4) 3,189 inch

Useable length (l 16) 2,439 inch

Clamping diameter depth (l 17) 2,402 inch

Min. clamping diameter depth (l 17min) 2,008 inch

Pull stud, thread size (d 13) 1"-8

weight of item 4,1 lbs

Insert Shape AK

DESCRIPTION & FEATURES

ASME B5.50 hydraulic expansion chuck AK182.CAT • metric • For tools with shank in accordance with DIN 1835 Form A • d1=50 • d11=32

Article number (J21):

AK182.CAT50.081.32

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

58,5 mm

Body diameter 2 (A2):

72 mm

Flange diameter (A4):

98,42 mm

Body length 1 (B1):

18,5 mm

Length 2 (B2):

61,95 mm

Protruding length (B3):

81 mm

Overall length (B4):

182,6 mm

Functional length (B71):

20 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

1"-8

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

32 mm

Shank length (C4):

101,75 mm

Connection code type workpiece side (C51):

ZYL

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0320

Connection diameter min (C71):

32 mm

Clamping length maximum (C81):

61 mm

Clamping length minimum (C82):

51 mm

Rotational speed maximum (D6):

12000 1/min

Weight of item (D7):

4,1 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ASME B5.50

Standard letter to the standard number (J11):

Data chip provision (J7):

ASME B5.50 hydraulic expansion chuck AK182.CAT AK182.CAT50.081.32
