ASME B5.50 shell end milling cutter arbor AB001.K AB001.K40-B19-038

ASME B5.50 shell end milling cutter arbor AB001.K AB001.K40-B19-038

€

166.00

EX VAT

€

204.18

INC VAT

Walter

ASME B5.50 shell end milling cutter arbor AB001.K AB001.K40-B19-038

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

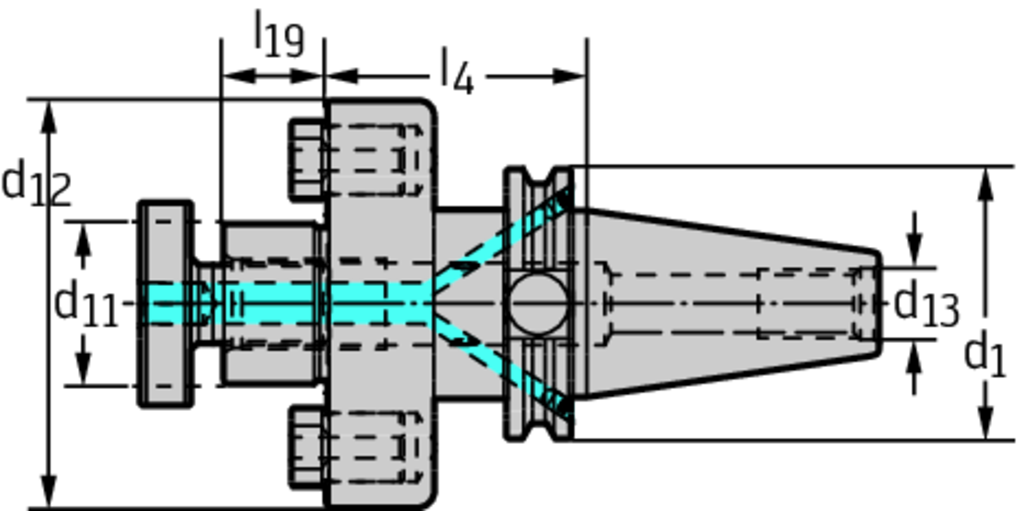

PRODUCT ATTRIBUTES

Tool designation (Designation) AB001.K40-B19-038

Connection size code (d 1) CAT40

Connection diameter (d 11) 0,75 inch

Body diameter (d 12) 1,75 inch

Functional length (l 4) 1,5 inch

Shank length (l 19) 0,687 inch

Pull stud, thread size (d 13) 5/8"-11

weight of item 1 lbs

Insert Shape AB

DESCRIPTION & FEATURES

ASME B5.50 shell end milling cutter arbor AB001.K • metric • For milling tools with parallel bore according to DIN 138 • d1=40 • d11=3/4

Article number (J21):

AB001.K40-B19-038

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

44,45 mm

Flange diameter (A4):

63,5 mm

Body length 1 (B1):

19,05 mm

Protruding length (B3):

55,55 mm

Overall length (B4):

123,85 mm

Functional length (B71):

38,1 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

5/8"-11

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

19,05 mm

Shank length (C4):

17,45 mm

Connection code type workpiece side (C51):

FDA

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0750

Connection diameter min (C71):

19,05 mm

Rotational speed maximum (D6):

8000 1/min

Weight of item (D7):

1 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ASME B5.50

Standard letter to the standard number (J11):

AD/

Data chip provision (J7):
