Basic body helical cutter M4258-050-C6-02-50-B

Basic body helical cutter M4258-050-C6-02-50-B

€

1,429.00

EX VAT

€

1,757.67

INC VAT

Walter

Basic body helical cutter M4258-050-C6-02-50-B

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

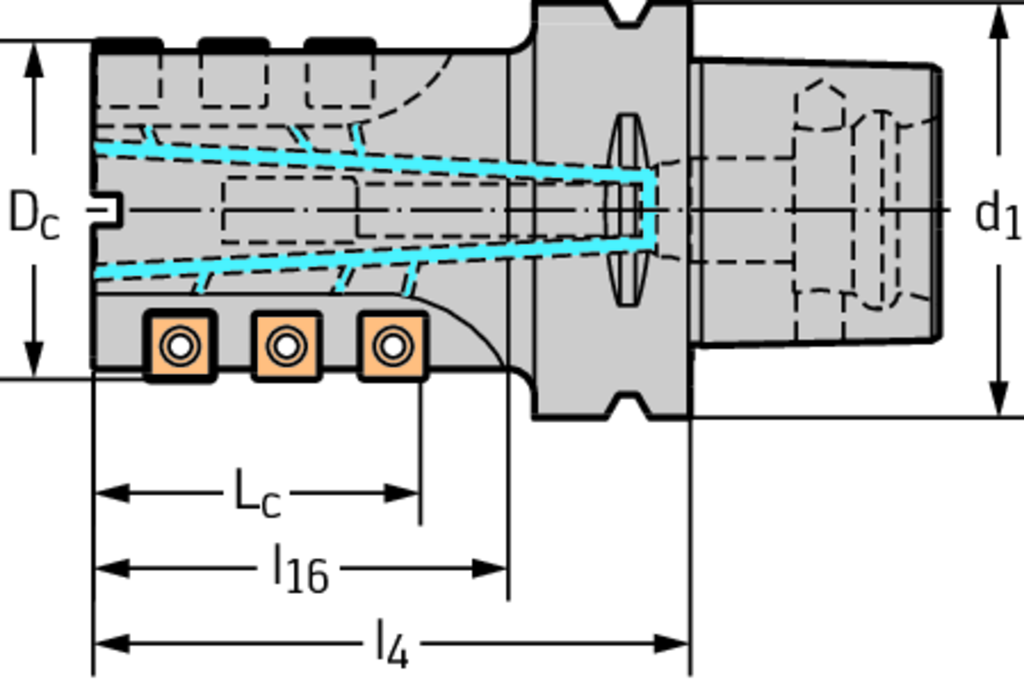

Tool designation (Designation) M4258-050-C6-02-50-B

Cutting edge diameter (D c) 50 mm

connection diameter (d 1) C6 mm

Maximum projection length (l 4) 85 mm

Useable length (l 16) 62 mm

Cutting edge length (L c) 52 mm

Number of teeth (Z) 2

weight of item 1,2 kg

Number of indexable inserts (No. of indexable inserts) 10

Insert Shape M4

DESCRIPTION & FEATURES

Basic body helical cutter M4258 • Walter Capto^TM ISO 26623 • κ=90° • metric • SD .. 1204 .. • Dc=50mm • Z=2

Article number (J21):

M4258-050-C6-02-50-B

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

50 mm

Depth of cut maximum (B2):

52 mm

Protruding length (B3):

85 mm

Usable length (B4):

85 mm

Overall length (B5):

126,4 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0630

Connection diameter machine side (C3):

63 mm

Shank length (C4):

38 mm

Rotational speed maximum (D6):

17300 1/min

Weight of item (D7):

1,16 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO26623-1

Data chip provision (J7):
