Boring bar – Copy turning system W1211-40TL-WL25

Boring bar – Copy turning system W1211-40TL-WL25

€

357.00

EX VAT

€

439.11

INC VAT

Walter

Boring bar – Copy turning system W1211-40TL-WL25

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

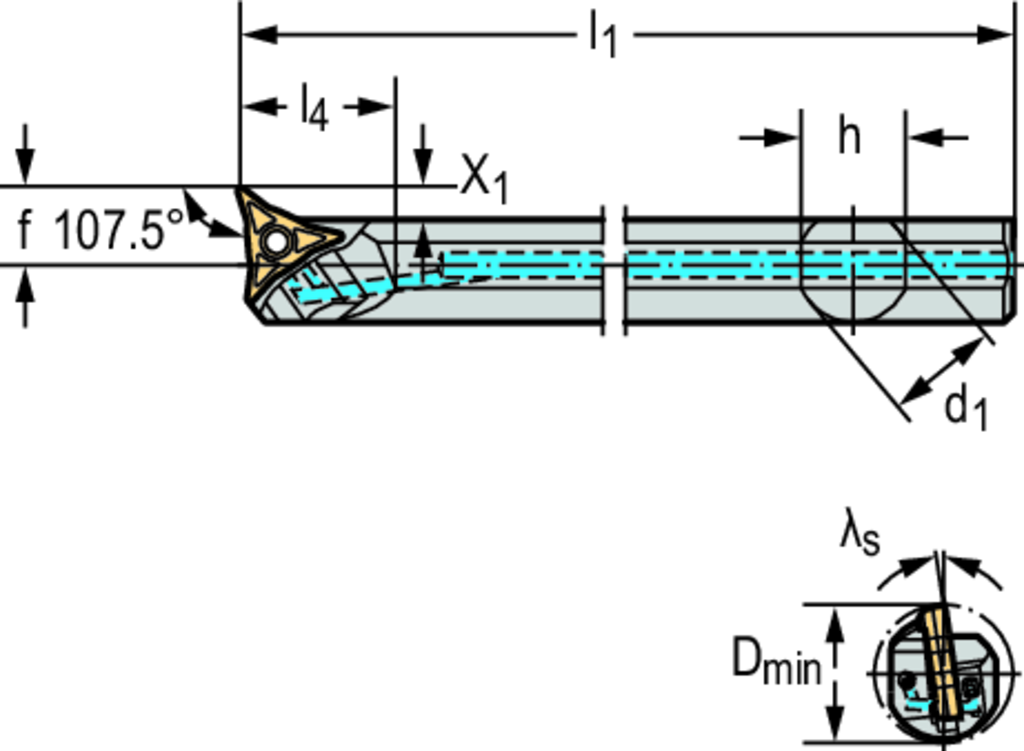

PRODUCT ATTRIBUTES

Tool designation (Designation) W1211-40TL-WL25

Minimum hole diameter (D min) 50 mm

Boring bar diameter d (d 1) 40 mm

Functional width (f) 27,5 mm

Height (h) 37 mm

Overall length (l 1) 300 mm

Maximum projection length (l 4) 54 mm

X (X 1) 10 mm

Orthogonal rake angle (γ) -1,3 Deg

Inclination angle (λ s) -7,5 Deg

Insert Shape W1

DESCRIPTION & FEATURES

Boring bar – Copy turning system W1211 • Walter Turn • metric • Parallel shank with clamping surface • Left • specific profile insert • WL .. 2504 ..

Article number (J21):

W1211-40TL-WL25

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

25 mm

Functional width (A2):

27,5 mm

Functional length (A3):

300 mm

Functional height (A4):

0 mm

Minimum bore diameter (A6):

50 mm

Overall length (B5):

300 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Shank height (C4):

37 mm

Weight of item (D7):

2,43 kg

Tool cutting edge angle (E1):

72,5 °

Insert included angle (E3):

35 °

Rake angle orthogonal (E4):

-1,3 °

Inclination angle (E5):

-7,5 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

WL25 VC 07 08

Data chip provision (J7):

Protruding length (LPR):

300 mm

Insert Type:

WL .. 2504 ..
