Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32
Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32 Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32

Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32

€
179.00
EX VAT
€
220.17
INC VAT
Walter
Boring bar – Internal thread S...-NTS-I S25R-NTS-IR22-32
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

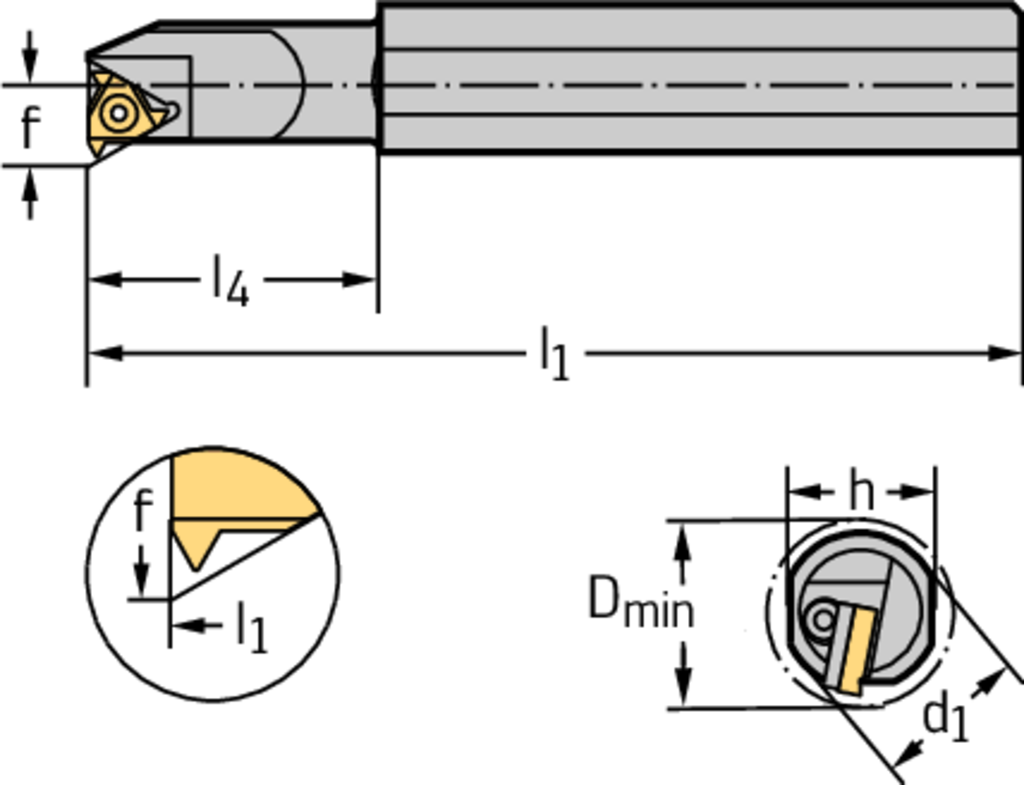

PRODUCT ATTRIBUTES
Tool designation (Designation) S25R-NTS-IR22-32
insert interface code symbol 05 (insert interface code symbol 05) 22
Minimum diameter (D min) 32 mm
Boring bar diameter d (d 1) 25 mm
Functional width (f) 17,2 mm
Height (h) 22,6 mm
overall length (l 1) 200 mm
Maximum projection length (l 4) 45 mm
Beta (β) 1,5 Deg
Insert Shape S.
DESCRIPTION & FEATURES
Boring bar – Internal thread S...-NTS-I • metric • Right • 25mm
Article number (J21):
S25R-NTS-IR22-32
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
3
Functional width (A2):
17,2 mm
Functional length (A3):
200 mm
Functional height (A4):
0 mm
Minimum bore diameter (A6):
32 mm
Overall length (B5):
200 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
22
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0250
Connection diameter machine side (C3):
25 mm
Shank height (C4):
22,6 mm
Weight of item (D7):
0,739 kg
Tool cutting edge angle (E1):
90 °
Cutting direction (F1):
Right
Drop head design (F3):
0
Clamping type code (F5):
S
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
NTS-I-22
Data chip provision (J7):
0
Protruding length (LPR):
200 mm
Insert Type:
25mm
