Boring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-RBoring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-R
Boring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-R Boring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-R

Boring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-R

€
775.00
EX VAT
€
953.25
INC VAT
Walter
Boring bar – Screw clamping E...-SDUC...-R E25T-SDUCL11-R
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

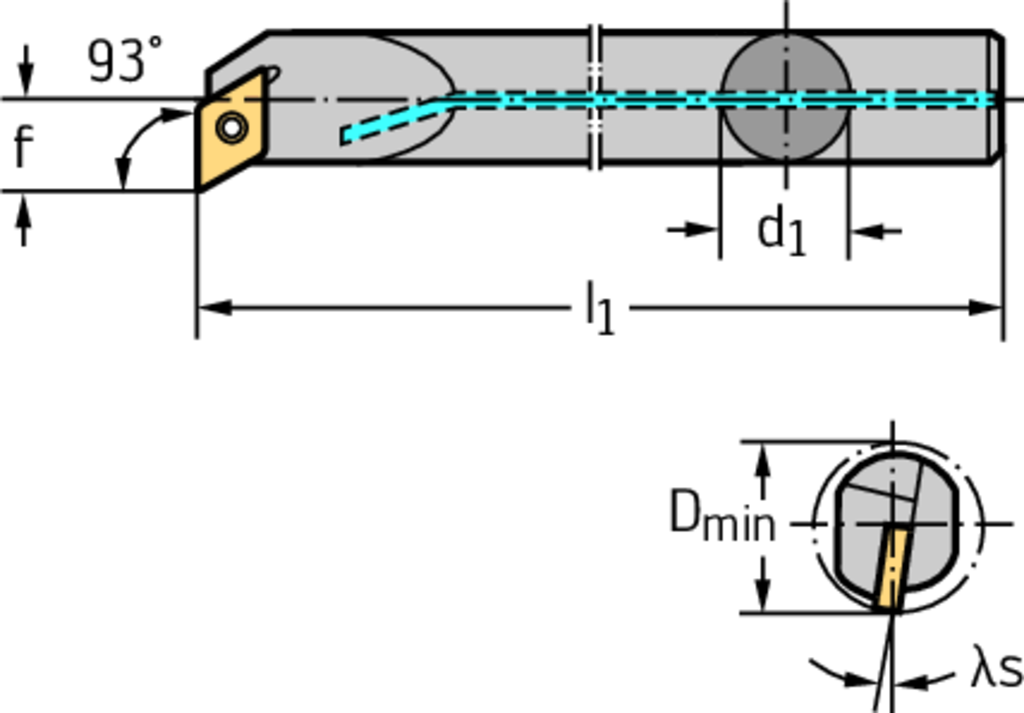

PRODUCT ATTRIBUTES
Tool designation (Designation) E25T-SDUCL11-R
Minimum hole diameter (D min) 32 mm
Boring bar diameter d (d 1) 25 mm
Functional width (f) 17 mm
Overall length (l 1) 270 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) -3 Deg
DESCRIPTION & FEATURES
Boring bar – Screw clamping E...-SDUC...-R • Walter Turn • metric • Parallel shank • Left • 25mm • rhombic insert • DC .. 11T3 ..
Article number (J21):
E25T-SDUCL11-R
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
11,6 mm
Functional width (A2):
17 mm
Functional length (A3):
270 mm
Functional height (A4):
0 mm
Minimum bore diameter (A6):
32 mm
Overall length (B5):
270 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0250
Connection diameter machine side (C3):
25 mm
Weight of item (D7):
1,581 kg
Tool cutting edge angle (E1):
93 °
Tool cutting edge angle type code (E2):
E
Insert included angle (E3):
55 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
-3 °
Cutting direction (F1):
Left
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Master insert identification (J42):
DCMT 11 T3 08
Data chip provision (J7):
0
Protruding length (LPR):
270 mm
Insert Type:
DC .. 11T3 ..
Carbide or Steel:
Steel
