Boring bar – Screw clamping E... E08R-SCLPL2

Boring bar – Screw clamping E... E08R-SCLPL2

€

360.00

EX VAT

€

442.80

INC VAT

Walter

Boring bar – Screw clamping E... E08R-SCLPL2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

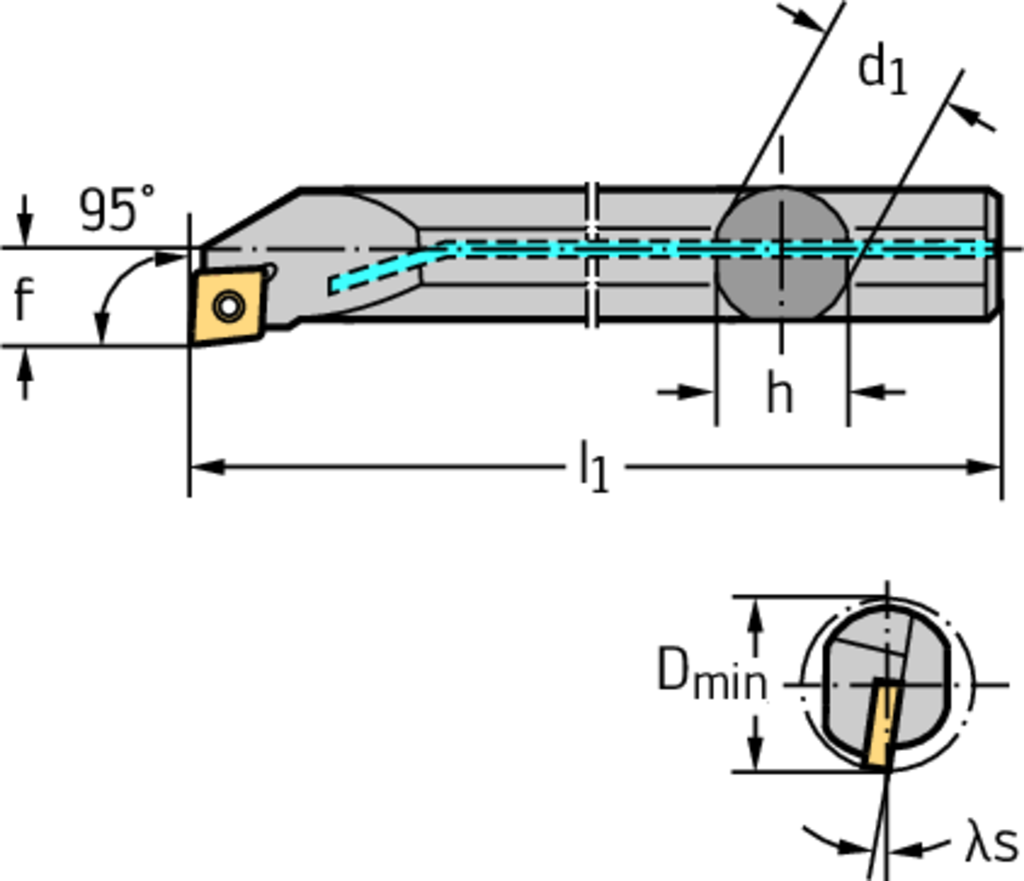

Tool designation (Designation) E08R-SCLPL2

Minimum hole diameter (D min) 0,598 inch

Boring bar diameter d (d 1) 0,5 inch

Functional width (f) 0,312 inch

Height (h) 0,484 inch

Overall length (l 1) 8 inch

Orthogonal rake angle (γ) 6 Deg

Inclination angle (λ s) -3 Deg

Insert Shape E.

DESCRIPTION & FEATURES

Boring bar – Screw clamping E...-SCLP • Walter Turn • inch • Parallel shank with clamping surface • Left • 13mm • rhombic insert • CP .. 0602 ..

Article number (J21):

E08R-SCLPL2

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

6,4 mm

Functional width (A2):

7,925 mm

Functional length (A3):

203,2 mm

Functional height (A4):

0 mm

Minimum bore diameter (A6):

15,2 mm

Overall length (B5):

203,2 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

12,7 mm

Shank height (C4):

12,294 mm

Weight of item (D7):

0,34 kg

Tool cutting edge angle (E1):

95 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

80 °

Rake angle orthogonal (E4):

6 °

Inclination angle (E5):

-3 °

Cutting direction (F1):

Left

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

CPMT 2(1.5)1

Data chip provision (J7):

Protruding length (LPR):

203,2 mm

Insert Type:

CP .. 0602 ..

Carbide or Steel:

Carbide
