Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12
Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12 Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12

Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12

€
1,765.00
EX VAT
€
2,170.95
INC VAT
Walter
Boring XT - Double edged roughboring tool B5460-198-250-N8-CC12
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

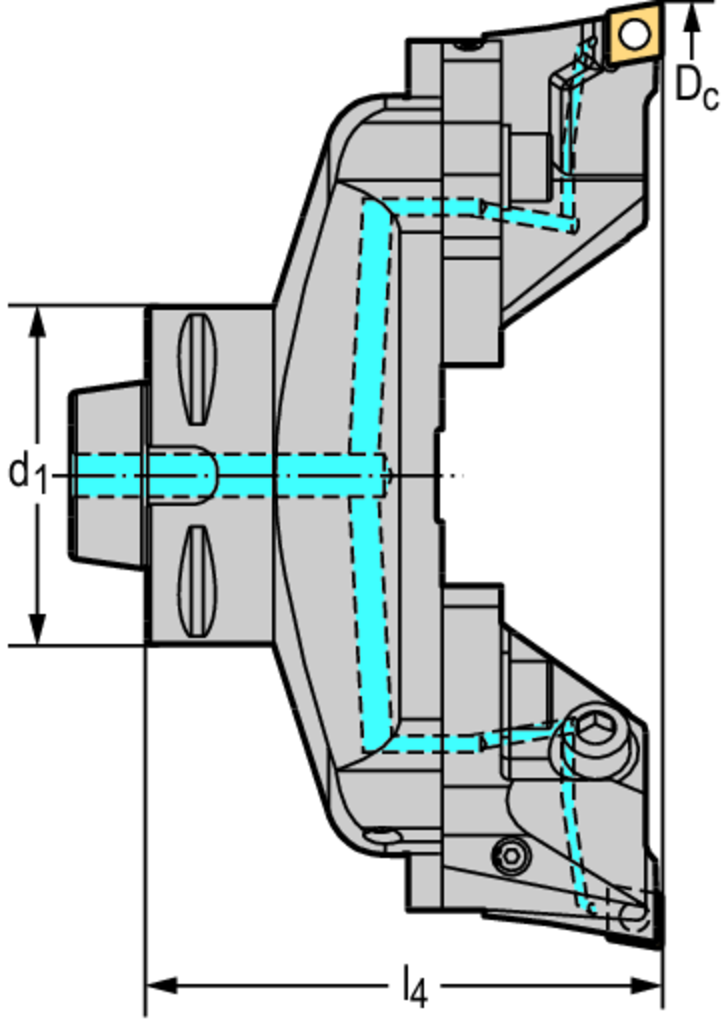

Tool designation (Designation) B5460-198-250-N8-CC12
Cutting edge diameter (D c) 198 - 250 mm
Connection diameter (d 1) 80 mm
Connection size code (d 1) NCT 80
Functional length (l 4) 122 mm
weight of item 7,7 kg
Insert Shape B5
DESCRIPTION & FEATURES
Boring XT - Double edged roughboring tool B5460 • Modular NCT adaptor • metric • Dc=198-250mm
Article number (J21):
B5460-198-250-N8-CC12
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-84
Tool style code (BLD):
8
Cutting diameter minimum (A11):
198 mm
Cutting diameter maximum (A12):
250 mm
Protruding length (B3):
122 mm
Overall length (B5):
140 mm
Functional length (B71):
122 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0800
Connection diameter machine side (C3):
80 mm
Shank length (C4):
18 mm
Rotational speed maximum (D6):
1929 1/min
Weight of item (D7):
7,65 kg
Adjustment property (D9):
1
Tool cutting edge angle (E1):
90 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
2
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Master insert identification (J42):
CCMT 12 04 08
Data chip provision (J7):
0
