CBN – Negative square SNGA SNGA120412TM-4 WBH30

CBN – Negative square SNGA SNGA120412TM-4 WBH30

€

132.00

EX VAT

€

162.36

INC VAT

Walter

CBN – Negative square SNGA SNGA120412TM-4 WBH30

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

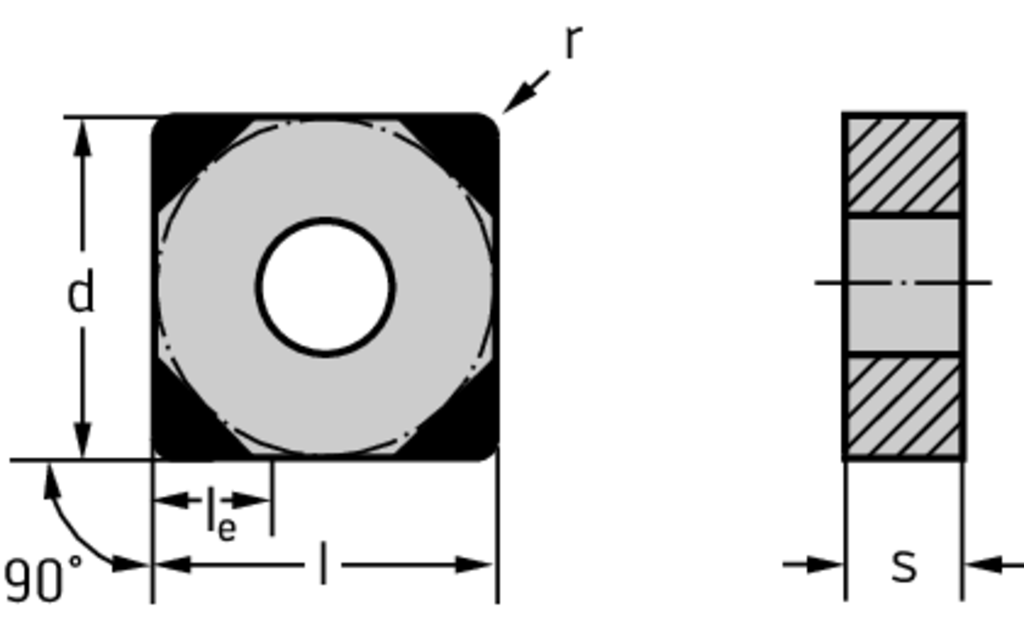

Tool designation (Designation) SNGA120412TM-4 WBH30

Number of cutting edges (Number of cutting edges) 4

Limited cutting edge length (l e) 2,8 mm

Corner radius (r) 1,2 mm

Feed per revolution (f) 0,05 - 0,3 mm

Depth of cut (a p) 0,1 - 1 mm

Insert Shape SN

DESCRIPTION & FEATURES

CBN – Negative square SNGA ...-TM-4 • WBH30 • r=1,2mm

Article number (J21):

SNGA120412TM-4 WBH30

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,762 mm

Corner radius (D1):

1,2 mm

Weight of item (D75):

0,01 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

2,8 mm

Chip breaker manufacturers designation (E9):

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,762 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,16 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WBH30

Tipped cutting edge code (H6):
