CBN – Negative square SNGN SNGN120408TM-S WBK30

CBN – Negative square SNGN SNGN120408TM-S WBK30

€

204.00

EX VAT

€

250.92

INC VAT

Walter

CBN – Negative square SNGN SNGN120408TM-S WBK30

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) SNGN120408TM-S WBK30

Number of cutting edges (Number of cutting edges) 8

Corner radius (r) 0,8 mm

Feed per revolution (f) 0,05 - 0,5 mm

Depth of cut (a p) 0,1 - 5 mm

Insert Shape SN

DESCRIPTION & FEATURES

CBN – Negative square SNGN ...-TM-S • WBK30 • r=0,8mm

Article number (J21):

SNGN120408TM-S WBK30

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

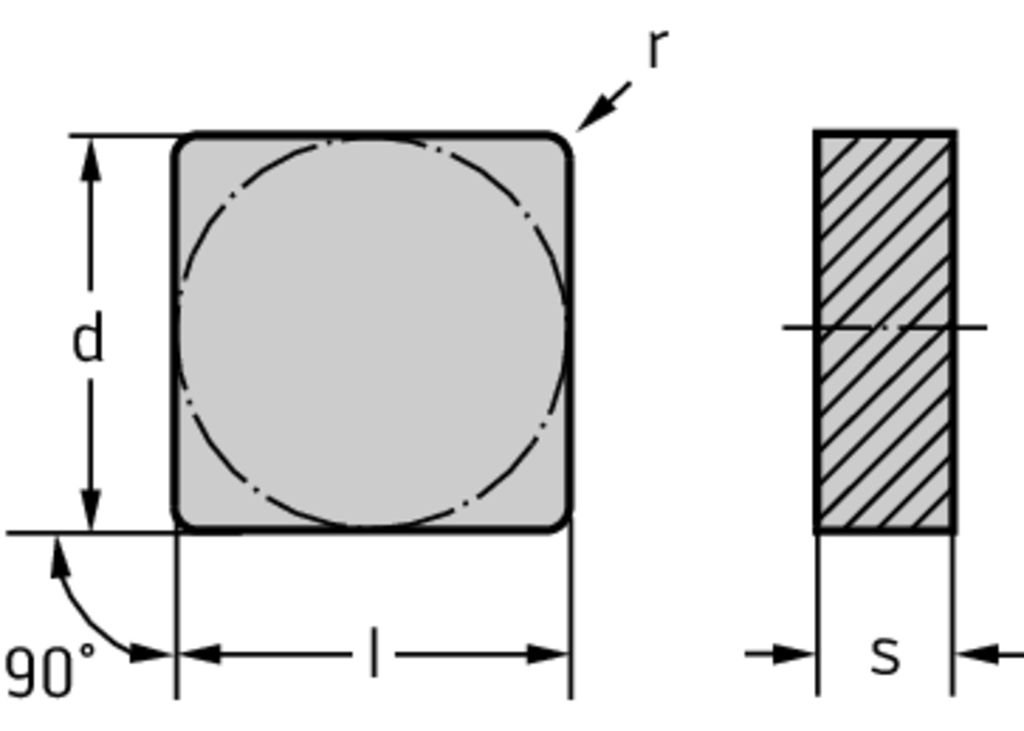

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,762 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,009 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

TM-S

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,762 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,16 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WBK30

Coating (H5):

CBN

Tipped cutting edge code (H6):

Standard designation (J11):

SNGN120408
