CBN – Positive rhombic 35° VBGW VBGW160408TM-2 WBH10

CBN – Positive rhombic 35° VBGW VBGW160408TM-2 WBH10

€

68.20

EX VAT

€

83.89

INC VAT

Walter

CBN – Positive rhombic 35° VBGW VBGW160408TM-2 WBH10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

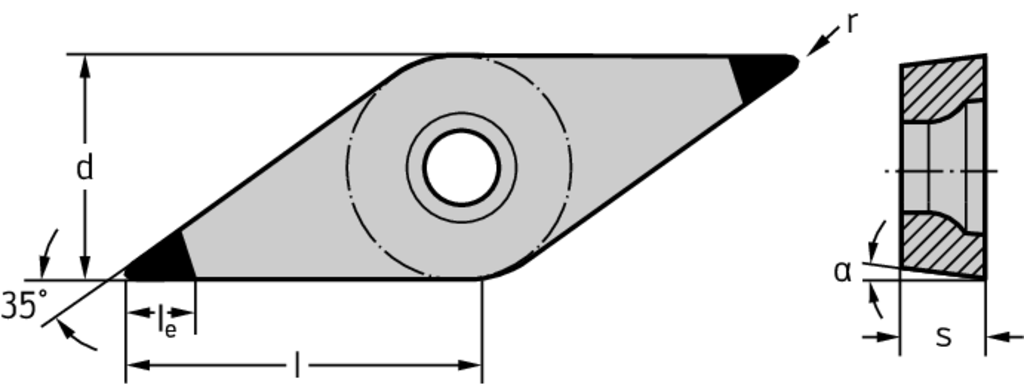

Tool designation (Designation) VBGW160408TM-2 WBH10

Number of cutting edges (Number of cutting edges) 2

Limited cutting edge length (l e) 3 mm

Corner radius (r) 0,8 mm

Lead angle (α) 5 Deg

Feed per revolution (f) 0,05 - 0,25 mm

Depth of cut (a p) 0,1 - 0,5 mm

Insert Shape VB

DESCRIPTION & FEATURES

CBN – Positive rhombic 35° VBGW ...-TM-2 • WBH10 • r=0,8mm

Article number (J21):

VBGW160408TM-2 WBH10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

35 °

Clearance angle major (A2):

5 °

Cutting edge length (B1):

16,606 mm

Inscribed circle diameter (B3):

9,525 mm

Insert thickness (C1):

4,762 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,014 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

3 mm

Chip breaker manufacturers designation (E9):

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,762 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WBH10

Coating (H5):

CBN

Tipped cutting edge code (H6):
