CBN – Positive triangular 60° TCGW TCGW110204TM-3 WBH10C

CBN – Positive triangular 60° TCGW TCGW110204TM-3 WBH10C

€

112.00

EX VAT

€

137.76

INC VAT

Walter

CBN – Positive triangular 60° TCGW TCGW110204TM-3 WBH10C

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

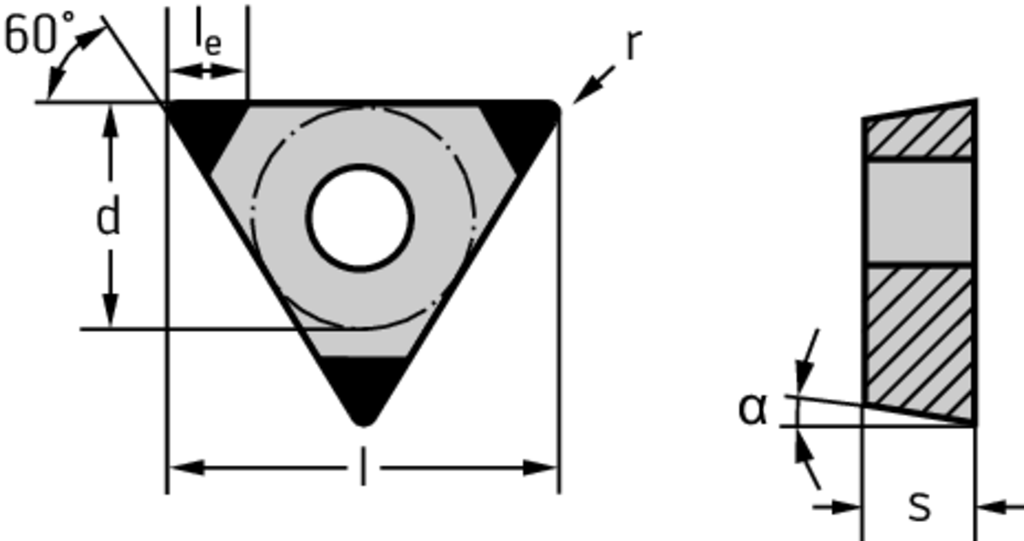

Tool designation (Designation) TCGW110204TM-3 WBH10C

Number of cutting edges (Number of cutting edges) 3

Limited cutting edge length (l e) 3,1 mm

Corner radius (r) 0,4 mm

Lead angle (α) 7 Deg

Feed per revolution (f) 0,05 - 0,2 mm

Depth of cut (a p) 0,1 - 0,3 mm

Insert Shape TC

DESCRIPTION & FEATURES

CBN – Positive triangular 60° TCGW ...-TM-3 • WBH10C • r=0,4mm

Article number (J21):

TCGW110204TM-3 WBH10C

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

10,999 mm

Inscribed circle diameter (B3):

6,35 mm

Insert thickness (C1):

2,381 mm

Corner radius (D1):

0,4 mm

Weight of item (D75):

0,001 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

3,1 mm

Chip breaker manufacturers designation (E9):

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

2,381 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,8 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WBH10C

Coating (H5):

CBN+TiAlSiN

Tipped cutting edge code (H6):
