CBN – Positive triangular 60° TCGW TCGW06T104TS-1 WBH10

CBN – Positive triangular 60° TCGW TCGW06T104TS-1 WBH10

€

54.60

EX VAT

€

67.16

INC VAT

Walter

CBN – Positive triangular 60° TCGW TCGW06T104TS-1 WBH10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

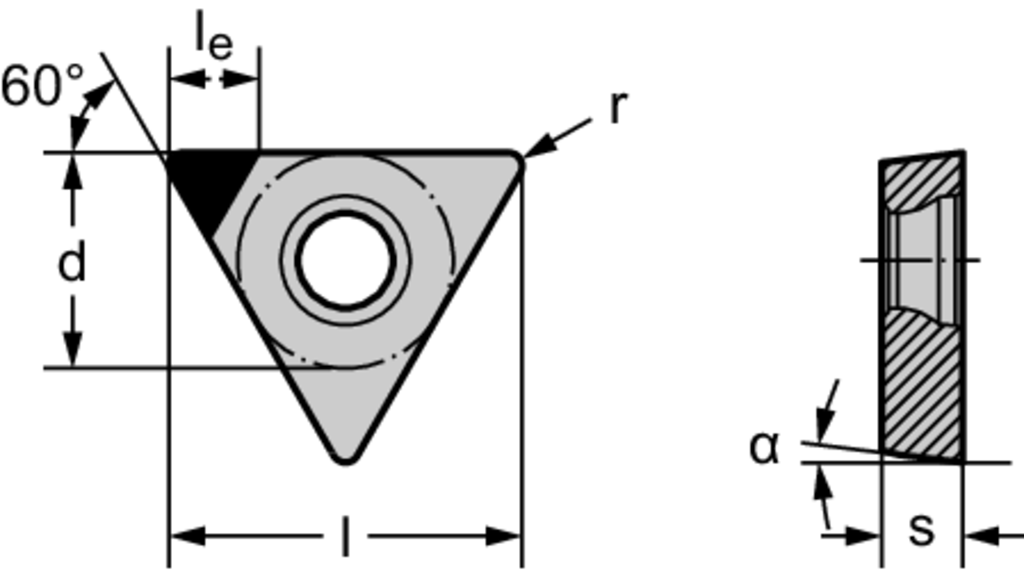

Tool designation (Designation) TCGW06T104TS-1 WBH10

Number of cutting edges (Number of cutting edges) 1

Limited cutting edge length (l e) 2,2 mm

Corner radius (r) 0,4 mm

Lead angle (α) 7 Deg

Feed per revolution (f) 0,02 - 0,12 mm

Depth of cut (a p) 0,1 - 0,3 mm

Insert Shape TC

DESCRIPTION & FEATURES

CBN – Positive triangular 60° TCGW ...-TS-1 • WBH10 • r=0,4mm

Article number (J21):

TCGW06T104TS-1 WBH10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

6,874 mm

Inscribed circle diameter (B3):

3,969 mm

Insert thickness (C1):

1,98 mm

Corner radius (D1):

0,4 mm

Weight of item (D75):

0,001 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

2,2 mm

Chip breaker manufacturers designation (E9):

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

1,98 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,15 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WBH10

Coating (H5):

CBN

Tipped cutting edge code (H6):
