Ceramic shoulder/slot milling cutters MC075-10.0A4P150C-WIS10

Ceramic shoulder/slot milling cutters MC075-10.0A4P150C-WIS10

€

257.00

EX VAT

€

316.11

INC VAT

Walter Prototyp

Ceramic shoulder/slot milling cutters MC075-10.0A4P150C-WIS10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

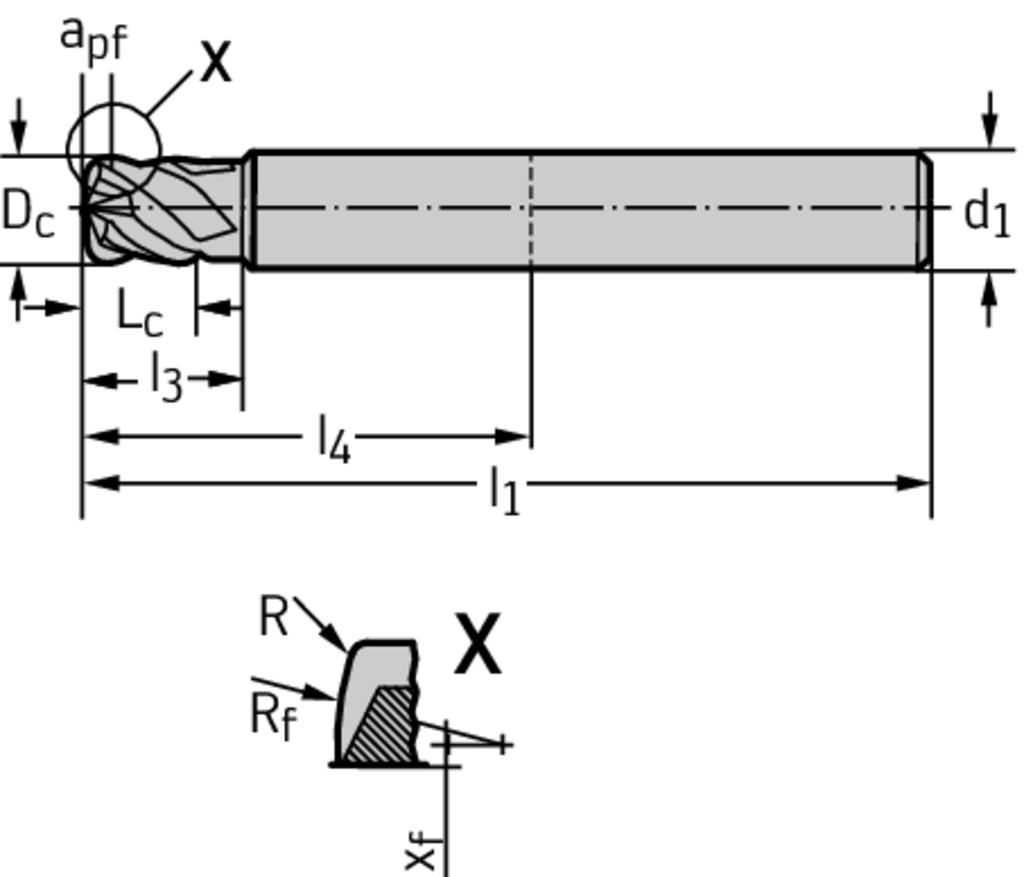

PRODUCT ATTRIBUTES

Tool designation (Designation) MC075-10.0A4P150C-WIS1

Cutting edge diameter (D c) 10 mm

Correction for average (a pf) 0,3 mm

Offset radius (x f) 0,8 mm

Corner radius (R f) 15 mm

Equivalent radius (R ers) 1,773 mm

Corner radius (r) 1,5 mm

Cutting edge length (L c) 7 mm

Overall length (l 1) 75 mm

Useable length (l 3) 22 mm

Maximum projection length (l 4) 35 mm

Connection diameter (d 1) 10 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Ceramic shoulder/slot milling cutters MC075 • DIN 6535 HA shank • metric • flute helix angle 35° • WIS10 • Dc=10mm • Z=4

Article number (J21):

MC075-10.0A4P150C-WIS10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

10 mm

Neck diameter (A5):

9,5 mm

Depth of cut maximum (B2):

7 mm

Protruding length (B3):

35 mm

Overall length (B5):

75 mm

Functional length (B71):

75 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,083 kg

Rake angle radial (E2):

-8 °

Rake angle axial (E3):

-6 °

Ramping angle maximum (E4):

1,5 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

35 °

Corner radius (G1):

1,5 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WIS10

Body material code (H4):

Coating (H5):

Keramik

Standard (J1):

PWZ-NORM

Standard letter to the standard number (J11):

Data chip provision (J7):
