12mm Ceramic shoulder/slot milling cutters MC275-12.0A6P100C-WIS10

12mm Ceramic shoulder/slot milling cutters MC275-12.0A6P100C-WIS10

€

336.00

EX VAT

€

413.28

INC VAT

Walter Prototyp

Ceramic shoulder/slot milling cutters MC275 • DIN 6535 HA shank • κ=90° • metric • Dc=12mm • Z=6

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

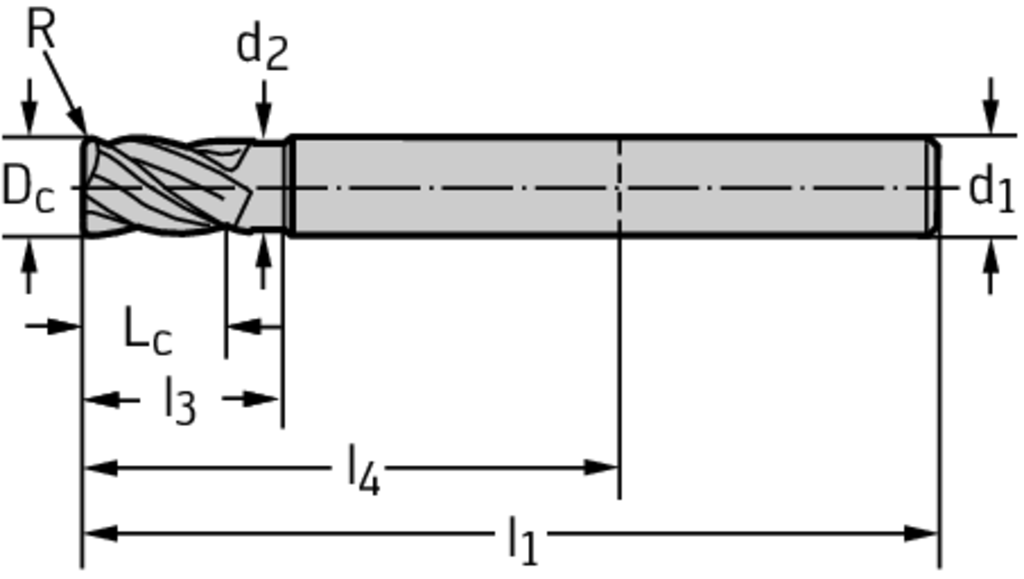

PRODUCT ATTRIBUTES

Tool designation (Designation) MC275-12.0A6P100C-WIS1

Cutting edge diameter (D c) 12 mm

Corner radius (r) 1 mm

Cutting edge length (L c) 7 mm

Useable length (l 3) 26 mm

Neck diameter (d 2) 11,4 mm

Overall length (l 1) 82 mm

Functional length (l 4) 37 mm

Shank diameter (d 1) 12 mm

Number of teeth (Z) 6

Insert Shape MC

DESCRIPTION & FEATURES

Ceramic shoulder/slot milling cutters MC275 • DIN 6535 HA shank • κ=90° • metric • Dc=12mm • Z=6

Article number (J21):

MC275-12.0A6P100C-WIS10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12 mm

Neck diameter (A5):

11,4 mm

Depth of cut maximum (B2):

2 mm

Protruding length (B3):

37 mm

Overall length (B5):

82 mm

Functional length (B71):

82 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0120

Connection diameter machine side (C3):

12 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

45 mm

Rotational speed maximum (D6):

80000 1/min
