Chamfer milling cutters M4574.019-A19-02-05-30

Chamfer milling cutters M4574.019-A19-02-05-30

€

301.00

EX VAT

€

370.23

INC VAT

Walter

Chamfer milling cutters M4574.019-A19-02-05-30

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

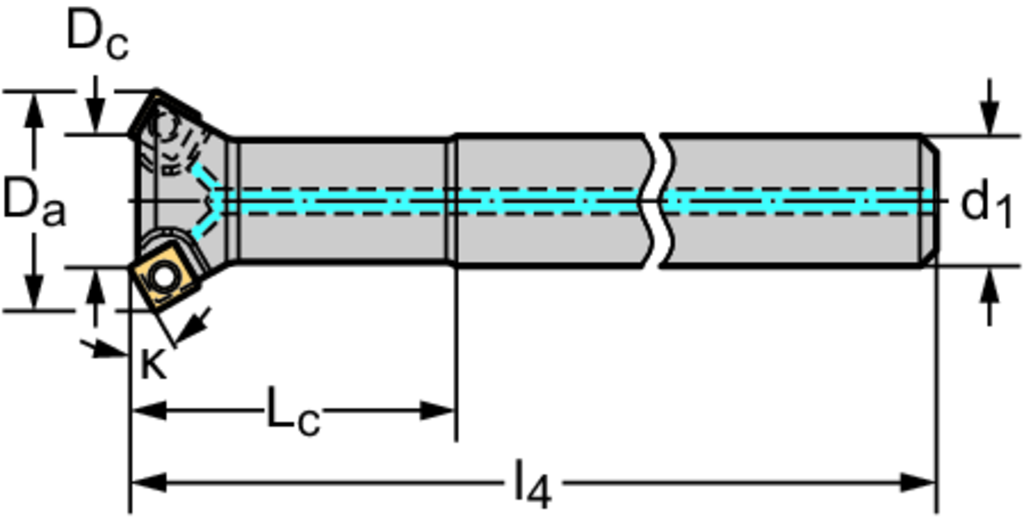

PRODUCT ATTRIBUTES

Tool designation (Designation) M4574.019-A19-02-05-3

Cutting edge diameter (D c) 0,75 inch

Cutting edge diameter (D a) 1,353 inch

Connection diameter (d 1) 0,75 inch

Maximum projection length (l 4) 1,575 inch

Overall length (l 1) 7,874 inch

Cutting edge length (L c) 0,158 inch

Lead angle κ (κ) 30 Deg

Number of teeth (Z) 2

weight of item 0,44 lbs

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M4

DESCRIPTION & FEATURES

Chamfer milling cutters M4574 • Parallel shank • inch • κ=60° • Dc=19,1mm • Z=2 • SD .. 09T3 ..

Article number (J21):

M4574.019-A19-02-05-30

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

19,05 mm

Cutting diameter maximum (A2):

34,368 mm

Body diameter (A3):

25,9 mm

Depth of cut maximum (B2):

6,8 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

200 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

Rotational speed maximum (D6):

30400 1/min

Weight of item (D7):

0,441 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

60 °

Plunge depth maximum (E5):

0,8 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
