Chamfer milling cutters M4574.013-A15-01-05

Chamfer milling cutters M4574.013-A15-01-05

€

252.00

EX VAT

€

309.96

INC VAT

Walter

Chamfer milling cutters M4574.013-A15-01-05

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

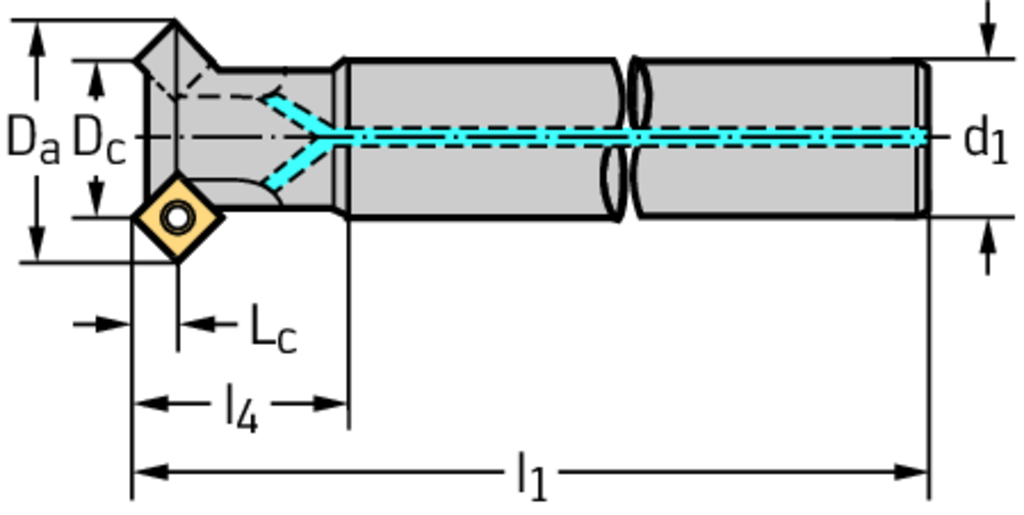

Tool designation (Designation) M4574.013-A15-01-05

Cutting edge diameter (D c) 0,5 inch

Cutting edge diameter (D a) 0,976 inch

Connection diameter (d 1) 0,625 inch

Maximum projection length (l 4) 1,575 inch

Overall length (l 1) 6,299 inch

Cutting edge length (L c) 0,217 inch

Lead angle κ (κ) 45 Deg

Number of teeth (Z) 1

weight of item 0,24 lbs

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape M4

DESCRIPTION & FEATURES

Chamfer milling cutters M4574 • Parallel shank • inch • κ=45° • Dc=12,7mm • Z=1 • SD .. 09T3 ..

Article number (J21):

M4574.013-A15-01-05

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

12,7 mm

Cutting diameter maximum (A2):

24,8 mm

Depth of cut maximum (B2):

5,5 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

160 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0625

Connection diameter machine side (C3):

15,875 mm

Shank length (C4):

90 mm

Rotational speed maximum (D6):

35000 1/min

Weight of item (D7):

0,241 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

45 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
