Chamfer milling cutters M4574-032-TC16-03-05Chamfer milling cutters M4574-032-TC16-03-05
Chamfer milling cutters M4574-032-TC16-03-05 Chamfer milling cutters M4574-032-TC16-03-05

Chamfer milling cutters M4574-032-TC16-03-05

€
322.00
EX VAT
€
396.06
INC VAT
Walter
Chamfer milling cutters M4574-032-TC16-03-05
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

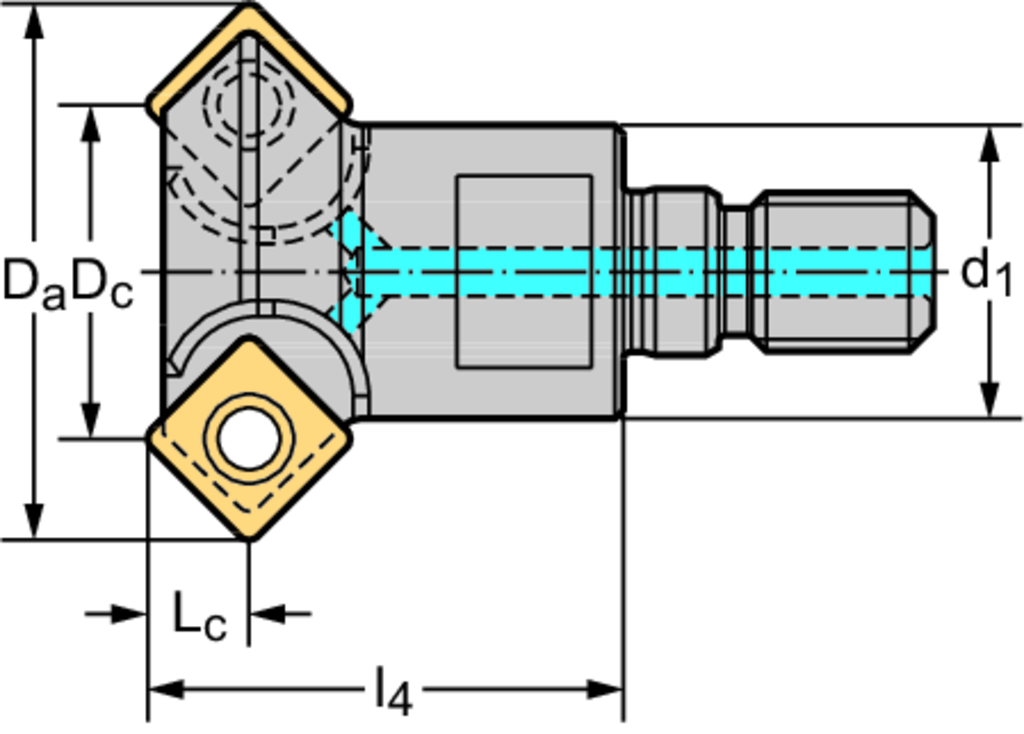

PRODUCT ATTRIBUTES
Tool designation (Designation) M4574-032-TC16-03-05
Cutting edge diameter (D c) 32 mm
Cutting edge diameter (D a) 44.8 mm
connection diameter (d 1) M16 mm
Maximum projection length (l 4) 40 mm
Cutting edge length (L c) 5,5 mm
Lead angle κ (κ) 45 Deg
Number of teeth (Z) 3
weight of item 0,21 kg
Number of indexable inserts (No. of indexable inserts) 3
DESCRIPTION & FEATURES
Chamfer milling cutters M4574 • Cylindrical modular • metric • κ=45° • Dc=32mm • Z=3 • SD .. 09T3 ..
Article number (J21):
M4574-032-TC16-03-05
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
2
Cutting diameter (A1):
32 mm
Cutting diameter maximum (A2):
44,8 mm
Depth of cut maximum (B2):
5,5 mm
Protruding length (B3):
40 mm
Usable length (B4):
40 mm
Overall length (B5):
64 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
28 mm
Shank length (C4):
24 mm
Rotational speed maximum (D6):
25000 1/min
Weight of item (D7):
0,214 kg
Adjustment property (D9):
0
Tool cutting edge angle (E1):
45 °
Plunge depth maximum (E5):
1 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
3
Face effective cutting edge count (F22):
3
Face mounted insert count (G13):
3
Coolant entry style code (H21):
1
Coolant exit style code (H22):
4
Body material code (H4):
S
Data chip provision (J7):
0
