Chamfering tool D4580.45-16.00A26-VC09

€

552.00

EX VAT

€

678.96

INC VAT

Walter

Chamfering tool D4580.45-16.00A26-VC09

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

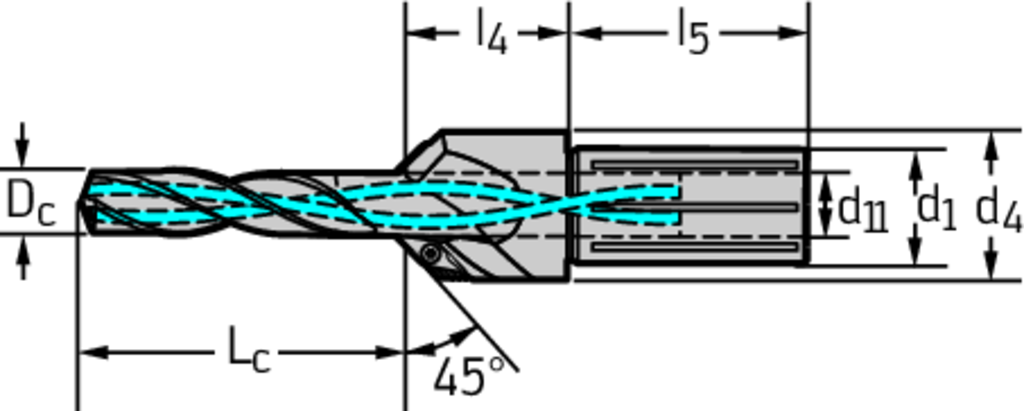

Tool designation (Designation) D4580.45-16.00A26-VC09

Minimum cutting diameter (D cmin) 0,555 inch

Maximum cutting diameter (D c max) 0,63 inch

Connection diameter (d 11) 0,63 inch

Shank diameter (d 1) 1 inch

Flange diameter (d 4) 1,26 inch

Functional length (l 4) 1,339 inch

Clamping length (l 5) 2,087 inch

weight of item 0,08 lbs

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape D4

DESCRIPTION & FEATURES

Chamfering tool D4580 • Xtratec • Parallel shank with collar • inch • κ=45° • Dc=14,1-16mm

Article number (J21):

D4580.45-16.00A26-VC09

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-86

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

14,1 mm

Cutting diameter 1st step maximum (A12):

16 mm

Body diameter maximum (A63):

32 mm

Protruding length (B3):

34 mm

Usable length (B4):

2,8 mm

Overall length (B5):

87 mm

Functional length (B71):

34 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1000

Connection diameter machine side (C3):

25,4 mm

Shank length (C4):

53 mm

Connection code type workpiece side (C51):

ZYL

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0160

Effective cutting edge count 1st step (D11):

Rotational speed maximum (D6):

15200 1/min

Weight of item (D7):

0,08 kg

Adjustment property (D9):

Point angle 1st step (E1):

45 °

Cutting direction (F1):

Right

Clamping type code 1st step (G11):

Adjustment limit minimum (G42):

0,2 mm

Adjustment limit maximum (G43):

1,2 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, outside cutting edge, 1st step (J52):

VC0902R

Data chip provision (J7):
