Circular slot milling cutters F2036M.0.50.040.063Circular slot milling cutters F2036M.0.50.040.063
Circular slot milling cutters F2036M.0.50.040.063 Circular slot milling cutters F2036M.0.50.040.063

Circular slot milling cutters F2036M.0.50.040.063

€
928.00
EX VAT
€
1,141.44
INC VAT
Walter
Circular slot milling cutters F2036M.0.50.040.063
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

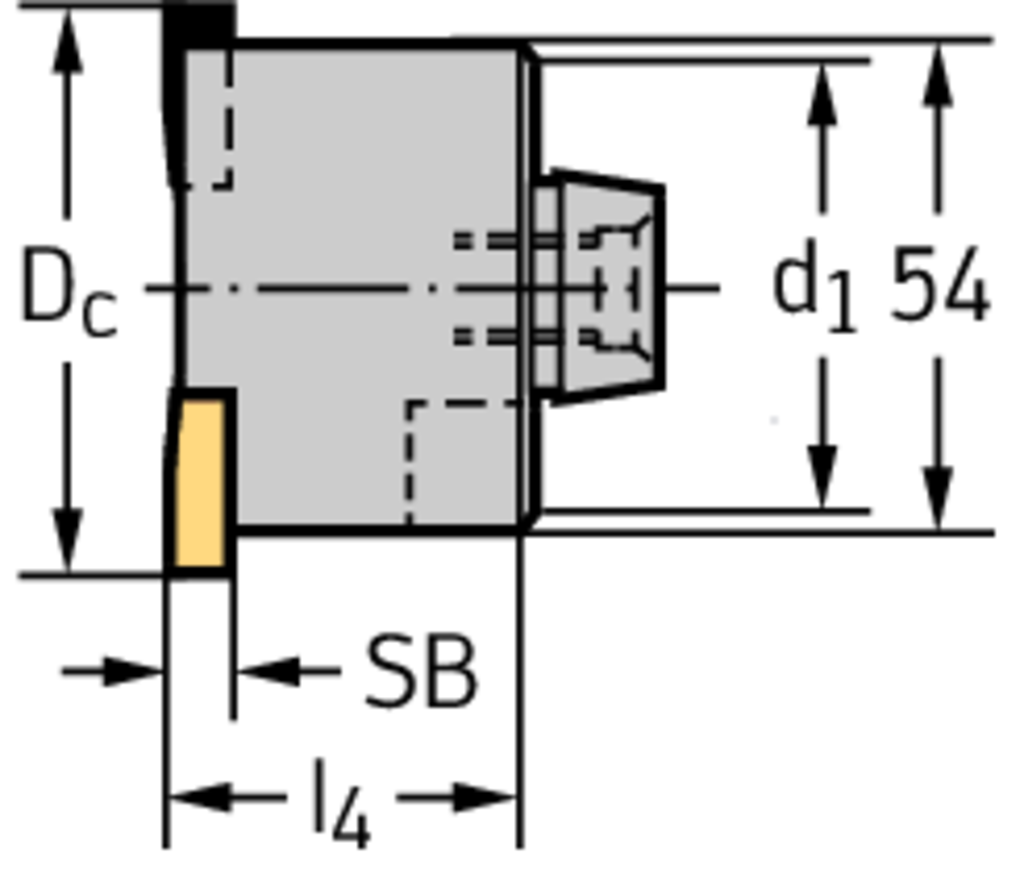

Tool designation (Designation) F2036M.0.50.040.063
Cutting edge diameter (D c) 63 mm
connection diameter (d 1) NCT 50 mm
Maximum projection length (l 4) 40 mm
Maximum depth of cut (a e max) 4 mm
Number of teeth (Z) 6
weight of item 0,69 kg
Milling width (SB H13) 3,15 mm
For diameter 63 mm
Number of indexable inserts (No. of indexable inserts) 6
Insert Shape F2
DESCRIPTION & FEATURES
Circular slot milling cutters F2036 • Modular NCT adaptor • κ=90° • metric • Dc=63mm
Article number (J21):
F2036M.0.50.040.063
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
3
Cutting diameter (A1):
63 mm
Body diameter (A3):
54 mm
Protruding length (B3):
40 mm
Usable length (B4):
40 mm
Overall length (B5):
52 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Connection diameter machine side (C3):
50 mm
Shank length (C4):
12 mm
Mill tool type ISO (D11):
F
Weight of item (D7):
0,685 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
6
Face mounted insert count (G13):
6
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Master insert identification, position A (J42):
P20200-3.3
Data chip provision (J7):
0
