Circular slot milling cutters F2036.5.16.090.016Circular slot milling cutters F2036.5.16.090.016
Circular slot milling cutters F2036.5.16.090.016 Circular slot milling cutters F2036.5.16.090.016

Circular slot milling cutters F2036.5.16.090.016

€
341.00
EX VAT
€
419.43
INC VAT
Walter
Circular slot milling cutters F2036.5.16.090.016
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

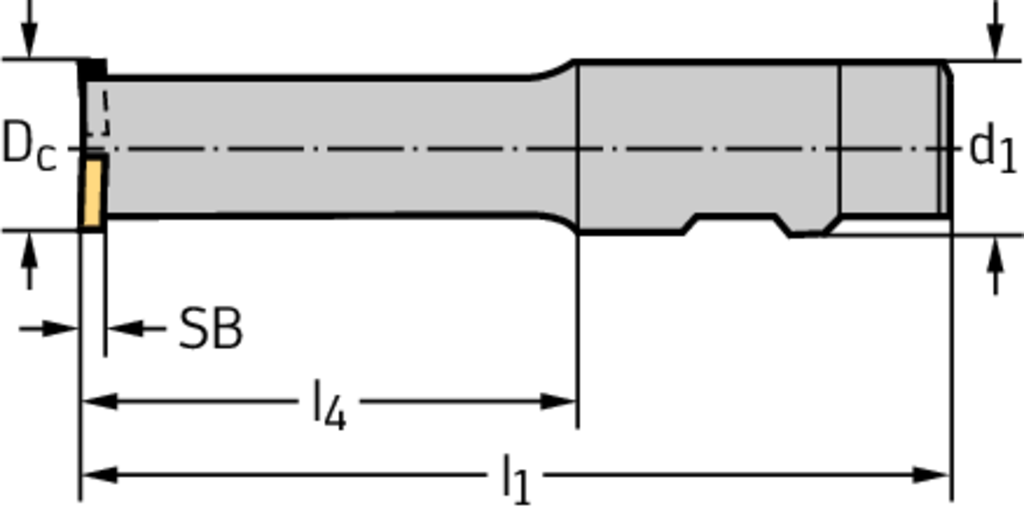

Tool designation (Designation) F2036.5.16.090.016
Cutting edge diameter (D c) 16 mm
connection diameter (d 1) 16 mm
Maximum projection length (l 4) 42 mm
Overall length (l 1) 90 mm
Maximum depth of cut (a e max) 1,75 mm
Number of teeth (Z) 1
weight of item 0,12 kg
Milling width (SB H13) 1,1 mm
For diameter 16 mm
Number of indexable inserts (No. of indexable inserts) 1
DESCRIPTION & FEATURES
Circular slot milling cutters F2036 • DIN 1835 B shank • κ=90° • metric • Dc=16mm
Article number (J21):
F2036.5.16.090.016
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
3
Cutting diameter (A1):
16 mm
Protruding length (B3):
42 mm
Usable length (B4):
42 mm
Overall length (B5):
90 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
10
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
16 mm
ISO-tolerance class shank diameter (C31):
h6
Shank length (C4):
48 mm
Mill tool type ISO (D11):
F
Weight of item (D7):
0,118 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
1
Face mounted insert count (G13):
1
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Standard (J1):
ISO3338-2
Standard letter to the standard number (J11):
WE
Master insert identification, position A (J42):
P20200-1.3
Data chip provision (J7):
0
