Clamping units Typ 2080 / 2085 C3-LC2085-4038MClamping units Typ 2080 / 2085 C3-LC2085-4038M
Clamping units Typ 2080 / 2085 C3-LC2085-4038M Clamping units Typ 2080 / 2085 C3-LC2085-4038M

Clamping units Typ 2080 / 2085 C3-LC2085-4038M

€
953.00
EX VAT
€
1,172.19
INC VAT
Walter
Clamping units Typ 2080 / 2085 C3-LC2085-4038M
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

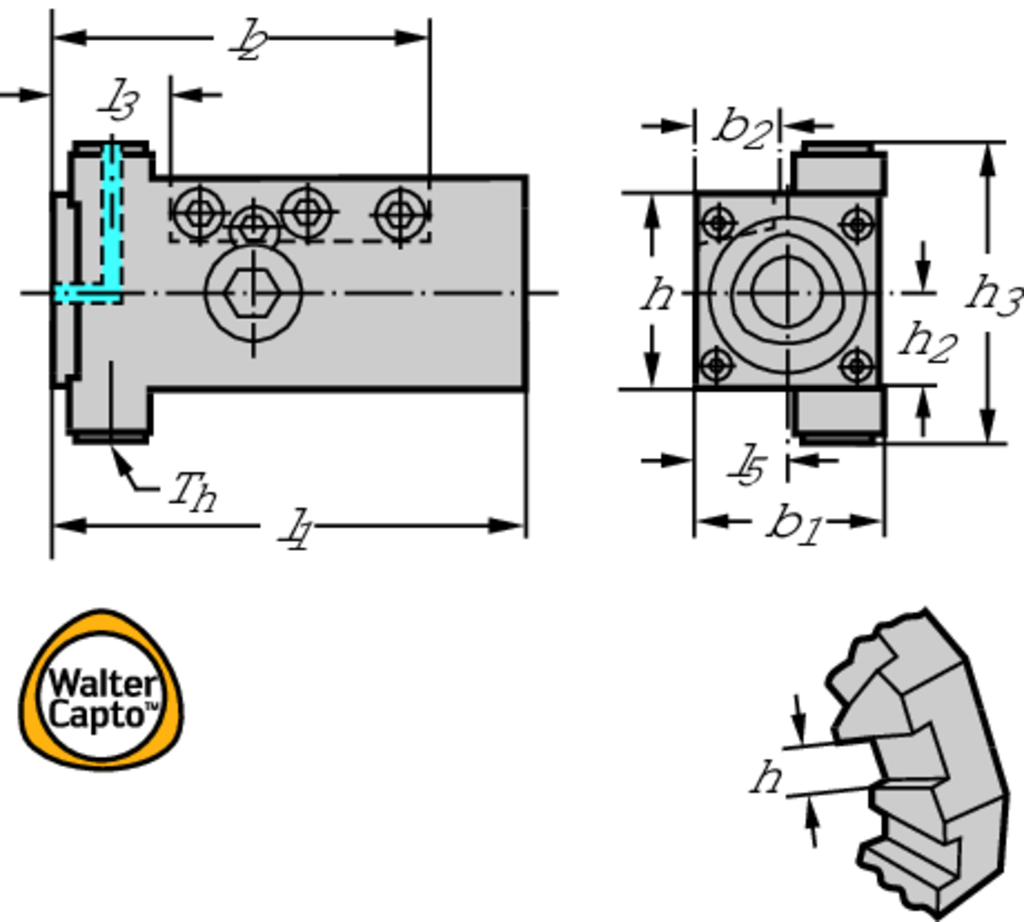

PRODUCT ATTRIBUTES
Tool designation (Designation) C3-LC2085-4038M
Size C3
Overall length (l 1) 95 mm
Projection length (l 2) 78,5 mm
Useable length (l 3) 25 mm
Shank length (l 5) 19 mm
Width (b 1) 38 mm
Width (b 2) 20 mm
Height (h) 40 mm
Height (h 2) 20 mm
Height (h 3) 62 mm
Cooling lubricant inlet, thread (T h) G1/8 mm
Insert Shape Ty
DESCRIPTION & FEATURES
Clamping units Typ 2080 / 2085 • metric • Left • C3 • Manually actuated • With square shank for external machining
Article number (J21):
C3-LC2085-4038M
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Protruding length (B3):
95 mm
Overall length (B4):
95 mm
Functional length (B71):
19 mm
Functional height (B72):
20 mm
Functional width (B73):
25 mm
Overall height (B81):
62 mm
Overall width (B91):
38 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
4020
Connection diameter machine side (C3):
32 mm
Connection code type workpiece side (C51):
CCS
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0320
Weight of item (D7):
1,073 kg
Cutting direction (E1):
Left
Kappa (E2):
0 °
Coolant entry style code (H21):
2
Coolant exit style code (H22):
2
Standard (J1):
ISO26623-2
Data chip provision (J7):
0
