Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60
Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60 Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60

Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60

€
1,053.00
EX VAT
€
1,295.19
INC VAT
Walter
Clamping units Typ 3000 / 2000 / 20.5 C5-NC2000-14024-60
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

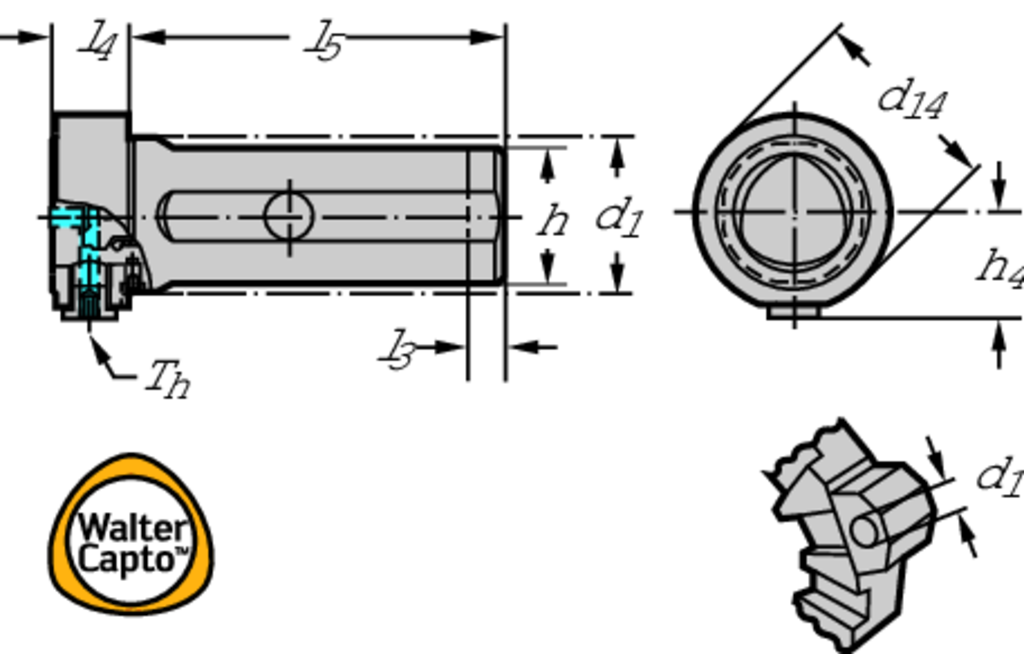

Tool designation (Designation) C5-NC2000-14024-60
Size C5
Connection diameter (d 1) 60 mm
Connection diameter (d 14) 61,5 mm
Maximum projection length (l 4) 25 mm
Useable length (l 3) 20 mm
Shank length (l 5) 25 mm
Height (h) 57 mm
Shank height (h 4) 33 mm
Cooling lubricant inlet, thread (T h) G1/8
Insert Shape Ty
DESCRIPTION & FEATURES
Clamping units Typ 3000 / 2000 / 20.5 • Parallel shank with clamping surface • metric • neutral • C5 • With round shank for internal machining • Manually actuated
Article number (J21):
C5-NC2000-14024-60
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Protruding length (B3):
25 mm
Overall length (B4):
164 mm
Functional length (B71):
25 mm
Functional width (B73):
0 mm
Overall height (B81):
62,75 mm
Overall width (B91):
61,5 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
22
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0600
Connection diameter machine side (C3):
60 mm
Connection code type workpiece side (C51):
CCS
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0500
Weight of item (D7):
3,175 kg
Cutting direction (E1):
Neutral
Kappa (E2):
0 °
Coolant entry style code (H21):
2
Coolant exit style code (H22):
2
Standard (J1):
ISO26623-2
Data chip provision (J7):
0
