Copy milling cutters F2339.UTC08.015.Z02.11Copy milling cutters F2339.UTC08.015.Z02.11
Copy milling cutters F2339.UTC08.015.Z02.11 Copy milling cutters F2339.UTC08.015.Z02.11

Copy milling cutters F2339.UTC08.015.Z02.11

€
255.00
EX VAT
€
313.65
INC VAT
Walter
Copy milling cutters F2339.UTC08.015.Z02.11
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

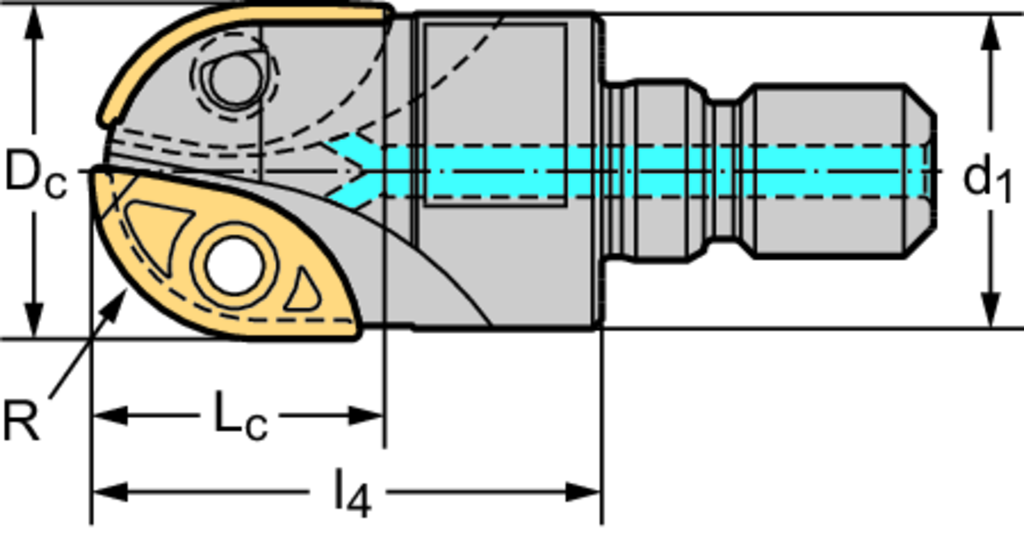

Tool designation (Designation) F2339.UTC08.015.Z02.11
Cutting edge diameter (D c) 0,625 inch
Corner radius (r) 0,313 inch
connection diameter (d 1) M8 inch
Maximum projection length (l 4) 0,984 inch
Cutting edge length (L c) 0,433 inch
Number of teeth (Z) 2
weight of item 0 lbs
Insert Shape F2
DESCRIPTION & FEATURES
Copy milling cutters F2339 • Cylindrical modular • inch • XD .. 1303 .. • Dc=16mm • Z=2
Article number (J21):
F2339.UTC08.015.Z02.11
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
10
Cutting diameter (A1):
15,875 mm
Body diameter (A3):
14,8 mm
Depth of cut maximum (B2):
11 mm
Protruding length (B3):
25 mm
Usable length (B4):
25 mm
Overall length (B5):
42,5 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0080
Connection diameter machine side (C3):
14,5 mm
Shank length (C4):
17,5 mm
Mill tool type ISO (D11):
L
Rotational speed maximum (D6):
40000 1/min
Weight of item (D7):
0,024 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
2
Face effective cutting edge count (F22):
2
Face mounted insert count (G13):
2
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
