Copy milling cutters with round inserts F2334R.UZ31.031.Z04.05

Copy milling cutters with round inserts F2334R.UZ31.031.Z04.05

€

375.00

EX VAT

€

461.25

INC VAT

Walter

Copy milling cutters with round inserts F2334R.UZ31.031.Z04.05

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

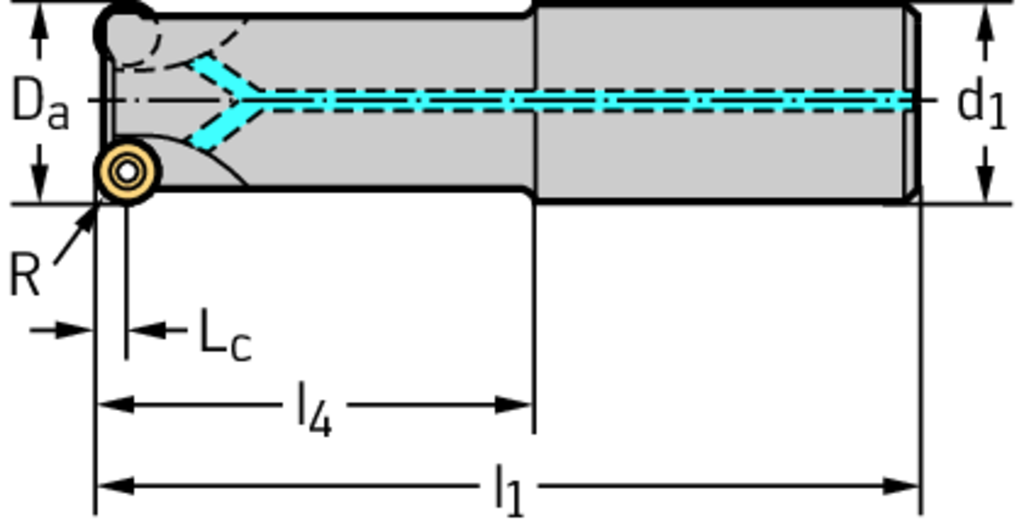

Tool designation (Designation) F2334R.UZ31.031.Z04.05

Corner radius (r) 0,197 inch

Maximum cutting diameter (D a) 1,25 inch

Shank diameter (d 1) 1 1/4 inch

Functional length (l 4) 2,75 inch

Cutting edge length (L c) 0,197 inch

Number of teeth (Z) 4

weight of item 0,6 lbs

Number of indexable inserts (No. of indexable inserts) 4

Insert Shape F2

DESCRIPTION & FEATURES

Copy milling cutters with round inserts F2334R • Parallel shank • inch • RO .. 10T3 .. • Dc=22mm • Z=4

Article number (J21):

F2334R.UZ31.031.Z04.05

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

21,75 mm

Cutting diameter maximum (A2):

31,75 mm

Body diameter (A3):

27,7 mm

Depth of cut maximum (B2):

5 mm

Protruding length (B3):

69,85 mm

Usable length (B4):

69,9 mm

Overall length (B5):

130,175 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1250

Connection diameter machine side (C3):

31,75 mm

Mill tool type ISO (D11):

Rotational speed maximum (D6):

37300 1/min

Weight of item (D7):

0,645 kg

Adjustment property (D9):

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

7,2 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, position A (J42):

ROHX10T3M0-D57

Data chip provision (J7):
