Copy milling cutters F2239.T18.020.Z01.15Copy milling cutters F2239.T18.020.Z01.15
Copy milling cutters F2239.T18.020.Z01.15 Copy milling cutters F2239.T18.020.Z01.15

Copy milling cutters F2239.T18.020.Z01.15

€
439.00
EX VAT
€
539.97
INC VAT
Walter
Copy milling cutters F2239.T18.020.Z01.15
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

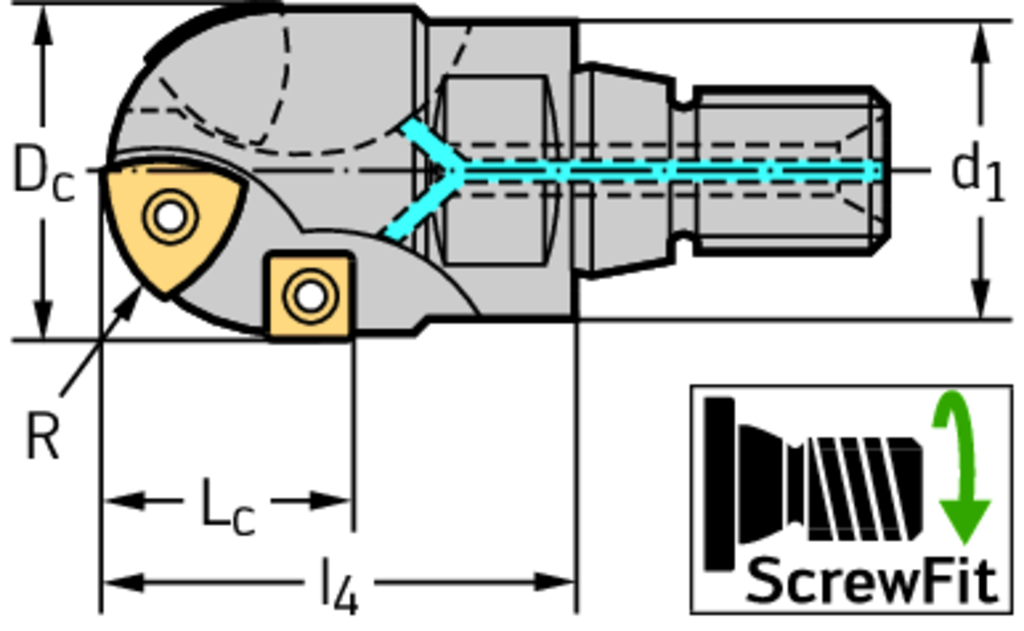

PRODUCT ATTRIBUTES
Tool designation (Designation) F2239.T18.020.Z01.15
Cutting edge diameter (D c) 20 mm
Corner radius (r) 10 mm
connection diameter (d 1) T18 mm
Maximum projection length (l 4) 30 mm
Cutting edge length (L c) 15 mm
Number of teeth (Z) 1
weight of item 0,05 kg
Number of indexable inserts (No. of indexable inserts) 1
Insert Shape F2
DESCRIPTION & FEATURES
Copy milling cutters F2239 • ScrewFit • metric • P2 .. 0603 .. • Dc=20mm • Z=1
Article number (J21):
F2239.T18.020.Z01.15
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
10
Cutting diameter (A1):
20 mm
Body diameter (A3):
18,5 mm
Depth of cut maximum (B2):
15 mm
Protruding length (B3):
30 mm
Usable length (B4):
30 mm
Overall length (B5):
51 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0180
Connection diameter machine side (C3):
18,5 mm
Mill tool type ISO (D11):
L
Rotational speed maximum (D6):
35000 1/min
Weight of item (D7):
0,053 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
1
Face effective cutting edge count (F22):
1
Face mounted insert count (G13):
2
Peripheral mounted insert count (G15):
1
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
