Copy milling cutters F2239.TC10.020.Z01.15

Copy milling cutters F2239.TC10.020.Z01.15

€

394.00

EX VAT

€

484.62

INC VAT

Walter

Copy milling cutters F2239.TC10.020.Z01.15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

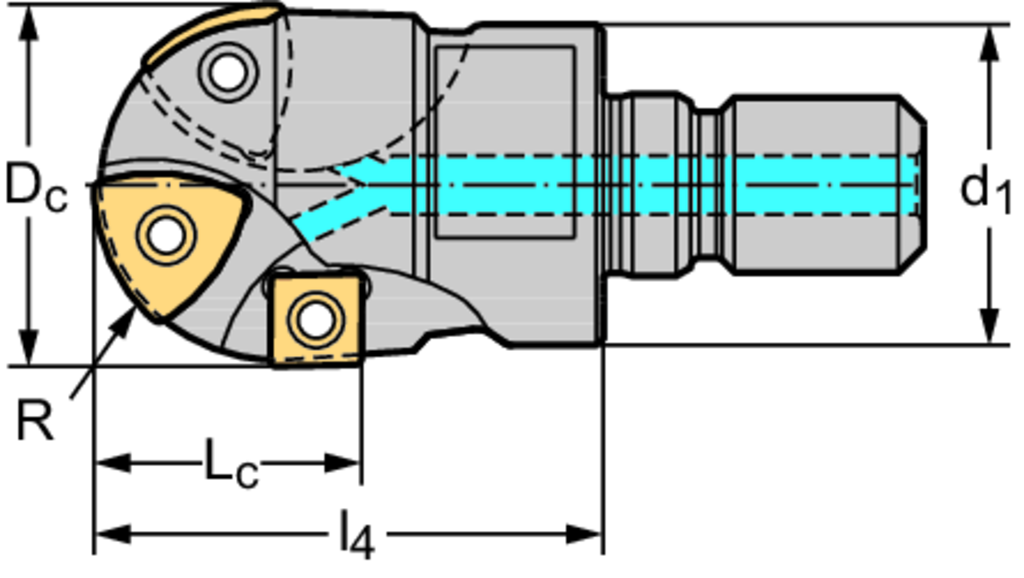

Tool designation (Designation) F2239.TC10.020.Z01.15

Cutting edge diameter (D c) 20 mm

Corner radius (r) 10 mm

connection diameter (d 1) M10 mm

Maximum projection length (l 4) 30 mm

Cutting edge length (L c) 15 mm

Number of teeth (Z) 1

weight of item 0,04 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape F2

DESCRIPTION & FEATURES

Copy milling cutters F2239 • Cylindrical modular • metric • P2 .. 10T2 .. • Dc=20mm • Z=1

Article number (J21):

F2239.TC10.020.Z01.15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

20 mm

Body diameter (A3):

18,5 mm

Depth of cut maximum (B2):

15 mm

Protruding length (B3):

30 mm

Usable length (B4):

30 mm

Overall length (B5):

49,5 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

18,5 mm

Shank length (C4):

19,5 mm

Mill tool type ISO (D11):

Rotational speed maximum (D6):

35000 1/min

Weight of item (D7):

0,044 kg

Adjustment property (D9):

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Peripheral mounted insert count (G15):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
