Copy milling cutters F2339.W40.040.Z02.31

Copy milling cutters F2339.W40.040.Z02.31

€

454.00

EX VAT

€

558.42

INC VAT

Walter

Copy milling cutters F2339.W40.040.Z02.31

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

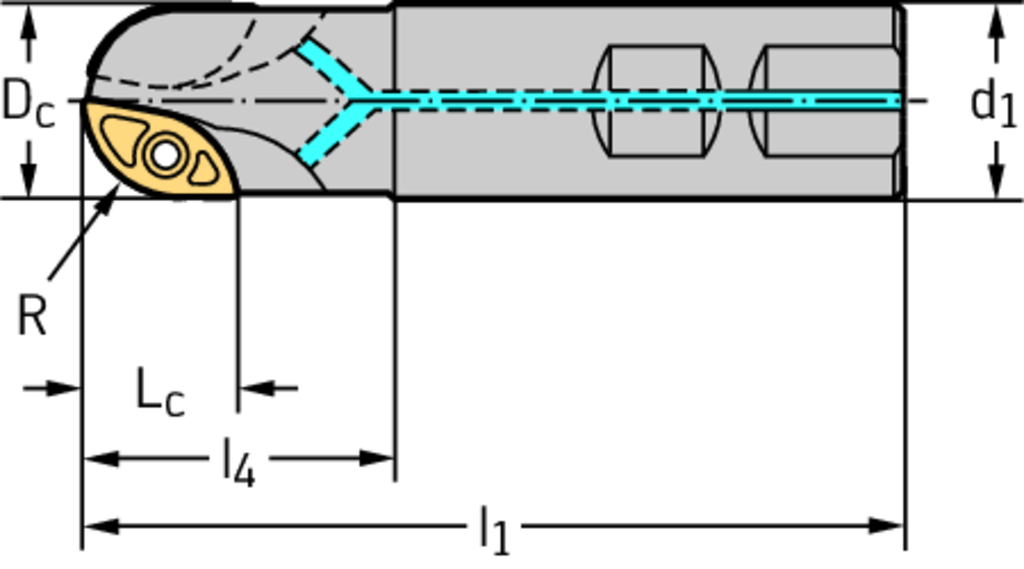

Tool designation (Designation) F2339.W40.040.Z02.31

Cutting edge diameter (D c) 40 mm

Corner radius (r) 20 mm

connection diameter (d 1) 40 mm

Maximum projection length (l 4) 65 mm

Overall length (l 1) 150 mm

Cutting edge length (L c) 31 mm

Number of teeth (Z) 2

weight of item 1,2 kg

DESCRIPTION & FEATURES

Copy milling cutters F2339 • DIN 1835 B shank • metric • XD .. 3210 .. • Dc=40mm • Z=2

Article number (J21):

F2339.W40.040.Z02.31

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

40 mm

Depth of cut maximum (B2):

31 mm

Protruding length (B3):

65 mm

Usable length (B4):

65 mm

Overall length (B5):

150 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

70 mm

Mill tool type ISO (D11):

Rotational speed maximum (D6):

12500 1/min

Weight of item (D7):

1,15 kg

Adjustment property (D9):

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO3338-2

Standard letter to the standard number (J11):

Data chip provision (J7):
