Deep parting blade G2042...N...-P G2042.26N-3T38SX-P

Deep parting blade G2042...N...-P G2042.26N-3T38SX-P

€

164.00

EX VAT

€

201.72

INC VAT

Walter

Deep parting blade G2042...N...-P G2042.26N-3T38SX-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

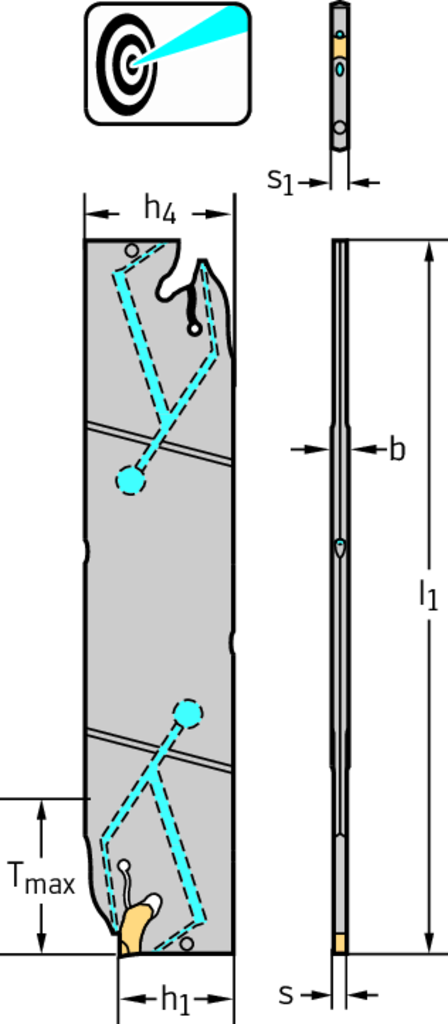

PRODUCT ATTRIBUTES

Tool designation (Designation) G2042.26N-3T38SX-P

Insert width (s) 3 mm

Maximum cutting depth (T max) 38 mm

Shank height (h 4) 26 mm

overall length (l 1) 130,6 mm

Center height (h 1) 20,8 mm

Body width (s 1) 2,4 mm

shank width (b) 3,5 mm

Insert Shape G2

DESCRIPTION & FEATURES

Deep parting blade G2042...N...-P • metric • neutral • SX00

Article number (J21):

G2042.26N-3T38SX-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-175

Tool style code (BLD):

Cutting width (A18):

3 mm

Functional length (A3):

130,6 mm

Functional height (A4):

0 mm

Cutting depth maximum (A8):

38 mm

Overall length (B5):

130,6 mm

Connection code type machine side (C11):

PMW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0260

Shank height (C4):

26 mm

Shank width (C8):

3,5 mm

Weight of item (D7):

0,073 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Neutral

Clamping type code (F5):

Body material code (H4):

Data chip provision (J7):
