Deep parting blade XLCFN XLCFN3206-GX24-4S

Deep parting blade XLCFN XLCFN3206-GX24-4S

€

134.00

EX VAT

€

164.82

INC VAT

Walter

Deep parting blade XLCFN XLCFN3206-GX24-4S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

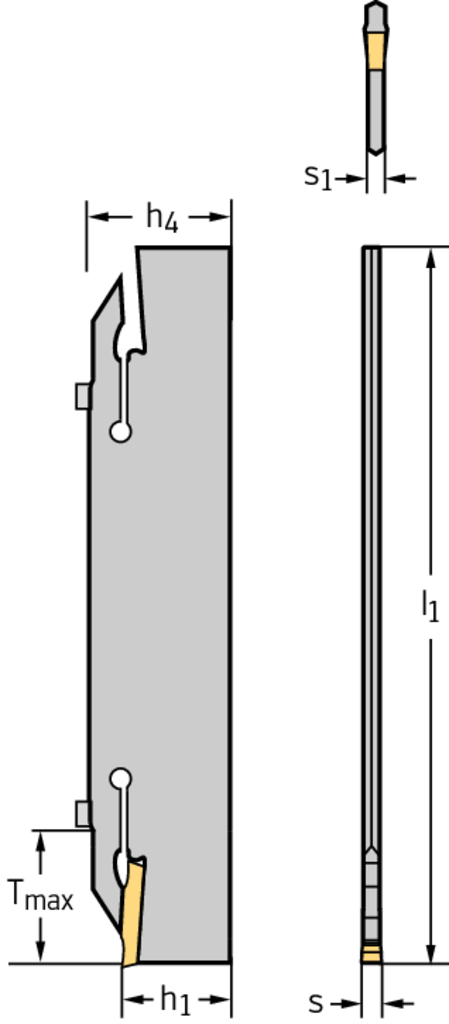

Tool designation (Designation) XLCFN3206-GX24-4S

Insert width (s) 6 mm

Maximum cutting depth (T max) 21 mm

Shank height (h 4) 32 mm

overall length (l 1) 179,3 mm

Center height (h 1) 24,2 mm

Body width (s 1) 4,2 mm

Insert Shape XL

DESCRIPTION & FEATURES

Deep parting blade XLCFN • metric • neutral • GX24

Article number (J21):

XLCFN3206-GX24-4S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-175

Tool style code (BLD):

Cutting width (A18):

6 mm

Functional length (A3):

179,3 mm

Functional height (A4):

0 mm

Cutting depth maximum (A8):

21 mm

Overall length (B5):

179,3 mm

Connection code type machine side (C11):

PMW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0320

Shank height (C4):

32 mm

Shank width (C8):

4,18 mm

Weight of item (D7):

0,231 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Neutral

Clamping type code (F5):

Body material code (H4):

Data chip provision (J7):
