DIN 6535 HA adaptor AK610.UZ19.E20.025

€

161.00

EX VAT

€

198.03

INC VAT

Walter Prototyp

DIN 6535 HA adaptor AK610.UZ19.E20.025

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

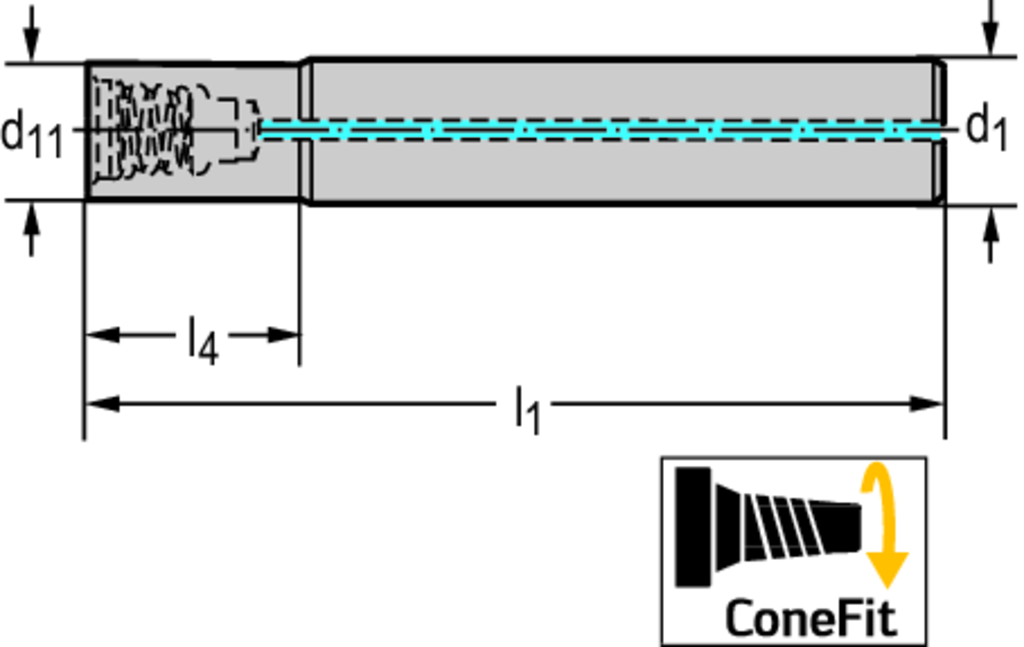

PRODUCT ATTRIBUTES

Tool designation (Designation) AK610.UZ19.E20.025

Connection size code (d 1) 0,75 inch

Connection diameter (d 11) E20

Maximum projection length (l 4) 1 inch

Overall length (l 1) 4,5 inch

weight of item 0,23 lbs

Insert Shape AK

DESCRIPTION & FEATURES

DIN 6535 HA adaptor AK610 • inch • For ConeFit milling cutter heads • d1=3/4 • d11=E20

Article number (J21):

AK610.UZ19.E20.025

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

18,4 mm

Body diameter 2 (A2):

18,4 mm

Body length 1 (B1):

25,4 mm

Length 2 (B2):

25,7 mm

Protruding length (B3):

62,7 mm

Overall length (B4):

114,3 mm

Functional length (B71):

114,3 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

ISO-tolerance class shank diameter (C31):

Connection code type workpiece side (C51):

SAC

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0200

ISO-tolerance class connection bore diameter (C711):

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,228 kg

Kappa (E2):

0 °

Mounting hole count (G35):

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):
