DIN 6535 HA adaptor AK610.Z32.E25.045

€

317.00

EX VAT

€

389.91

INC VAT

Walter Prototyp

DIN 6535 HA adaptor AK610.Z32.E25.045

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

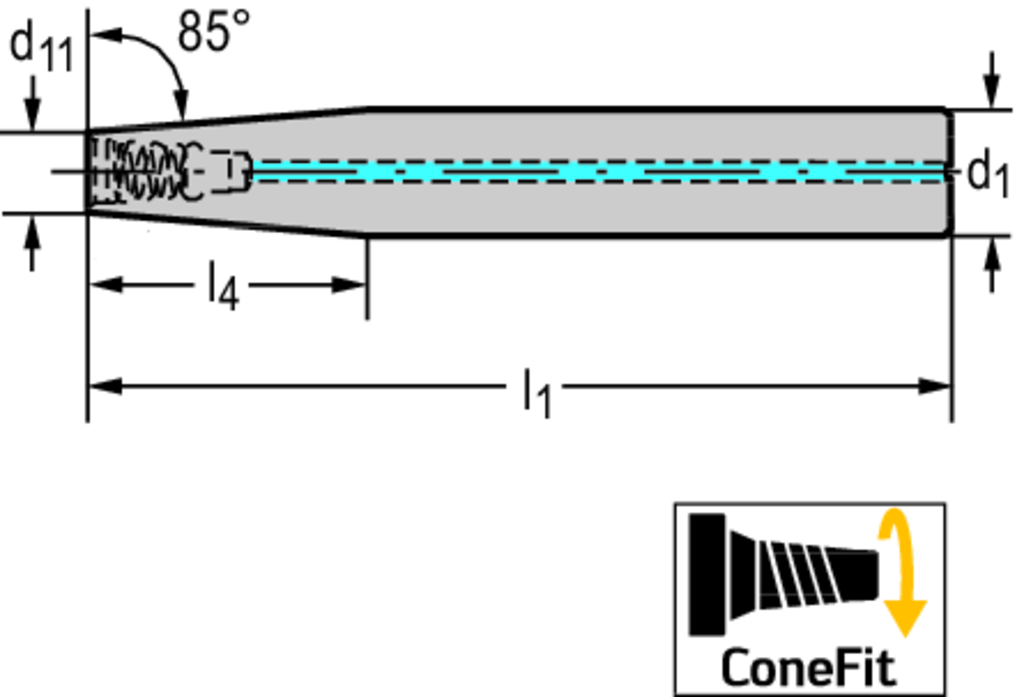

PRODUCT ATTRIBUTES

Tool designation (Designation) AK610.Z32.E25.045

Connection diameter (d 1) 32 mm

Connection size code (d 11) E25

Maximum projection length (l 4) 45 mm

Overall length (l 1) 200 mm

weight of item 1,17 kg

Insert Shape AK

DESCRIPTION & FEATURES

DIN 6535 HA adaptor AK610 • metric • For ConeFit milling cutter heads • With solid carbide shank • d1=32 • d11=E25

Article number (J21):

AK610.Z32.E25.045

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

24,1 mm

Body length 1 (B1):

45 mm

Protruding length (B3):

140 mm

Overall length (B4):

200 mm

Functional length (B71):

200 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0320

Connection diameter machine side (C3):

32 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

60 mm

Connection code type workpiece side (C51):

SAC

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0250

ISO-tolerance class connection bore diameter (C711):

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

1,172 kg

Kappa (E2):

0 °

Mounting hole count (G35):

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):
