DIN 69871 AD/B ER collet chuck with internal cooling AK300.S40.105.ER25

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S40.105.ER25

€

194.00

EX VAT

€

238.62

INC VAT

Walter

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S40.105.ER25

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

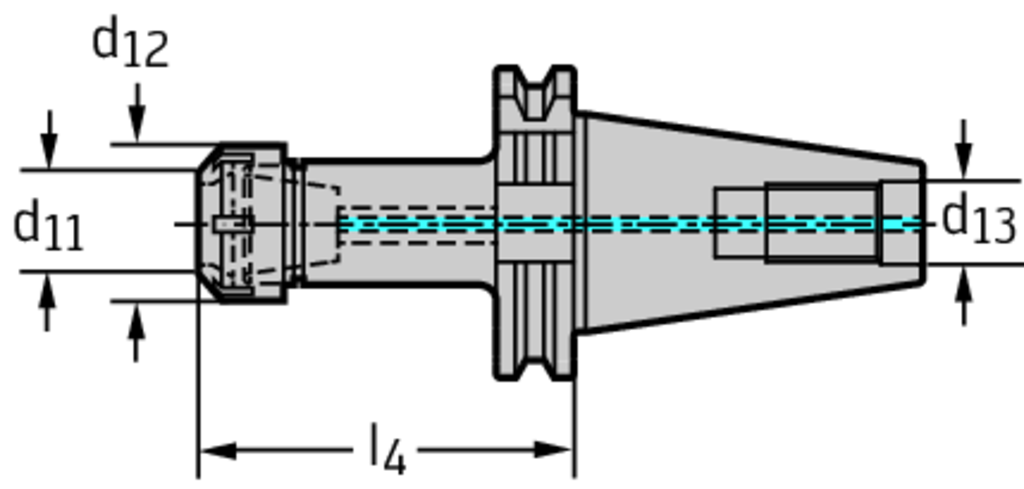

Tool designation (Designation) AK300.S40.105.ER25

Connection size code (d 1) SK40

Connection diameter (d 11) 1-16

Body diameter (d 12) 42 mm

Maximum projection length (l 4) 105 mm

Collets ER25

Pull stud, thread size (d 13) M16

weight of item 1,48 kg

Insert Shape AK

DESCRIPTION & FEATURES

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-1 • d1=40 • d11=ER25

Article number (J21):

AK300.S40.105.ER25

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

42 mm

Body diameter 2 (A2):

42 mm

Flange diameter (A4):

63,55 mm

Diameter lock nut (A5):

42 mm

Body length 1 (B1):

84,9 mm

Length 2 (B2):

85,9 mm

Protruding length (B3):

105 mm

Overall length (B4):

173,4 mm

Functional length (B71):

105 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

M16

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

26 mm

Shank length (C4):

68,4 mm

Connection code type workpiece side (C51):

SZD

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0250

Rotational speed maximum (D6):

12000 1/min

Weight of item (D7):

1,482 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO7388-1

Standard letter to the standard number (J11):

AD/

Data chip provision (J7):

DIN 69871 AD/B ER collet chuck with internal cooling AK300.S40.105.ER25
