Doosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-PDoosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-P
Doosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-P Doosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-P

Doosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-P

€
1.00
EX VAT
€
1.23
INC VAT
Walter
Doosan adaptor – Parting blades A2110-DO...-P A2110-DO-32L-058-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

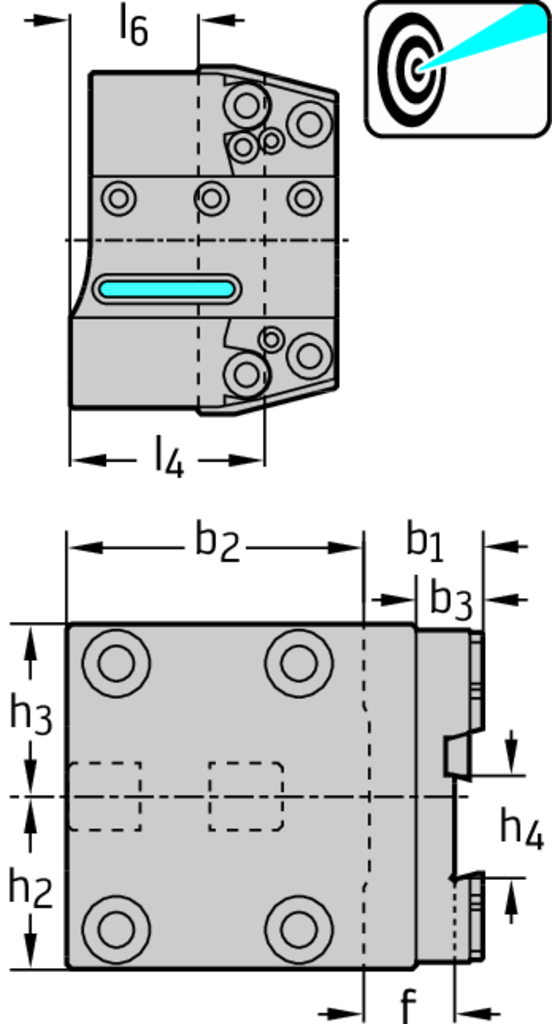

PRODUCT ATTRIBUTES
Tool designation (Designation) A2110-DO-32L-058-P
Shank height (h 4) 32 mm
Width (b 1) 35,5 mm
Radial width (b 2) 90 mm
Functional width (b 3) 20 mm
Functional width (f) 27 mm
Functional length (l 4) 58 mm
Length (l 6) 38 mm
Height (h 2) 52 mm
Height (h 3) 52 mm
weight of item 3 kg
Insert Shape A2
DESCRIPTION & FEATURES
Doosan adaptor – Parting blades A2110-DO...-P • metric • Left • 32L • Precision cooling • For Doosan machines
Article number (J21):
A2110-DO-32L-058-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body length 1 (B1):
38 mm
Protruding length (B3):
58 mm
Overall length (B4):
79 mm
Functional length (B71):
58 mm
Functional height (B72):
25 mm
Functional width (B73):
27 mm
Overall height (B81):
104 mm
Overall width (B91):
125,5 mm
Connection code type machine side (C11):
FLC
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
G0AN
Connection diameter machine side (C3):
32 mm
Connection code type workpiece side (C51):
PMW
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
8
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0320
Weight of item (D7):
2,998 kg
Cutting direction (E1):
Left
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
0
Data chip provision (J7):
0
