Doosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-PDoosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-P
Doosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-P Doosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-P

Doosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-P

€
861.00
EX VAT
€
1,059.03
INC VAT
Walter
Doosan adaptor – shank tools A2120-DO...-P A2120-DO-25N-072-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

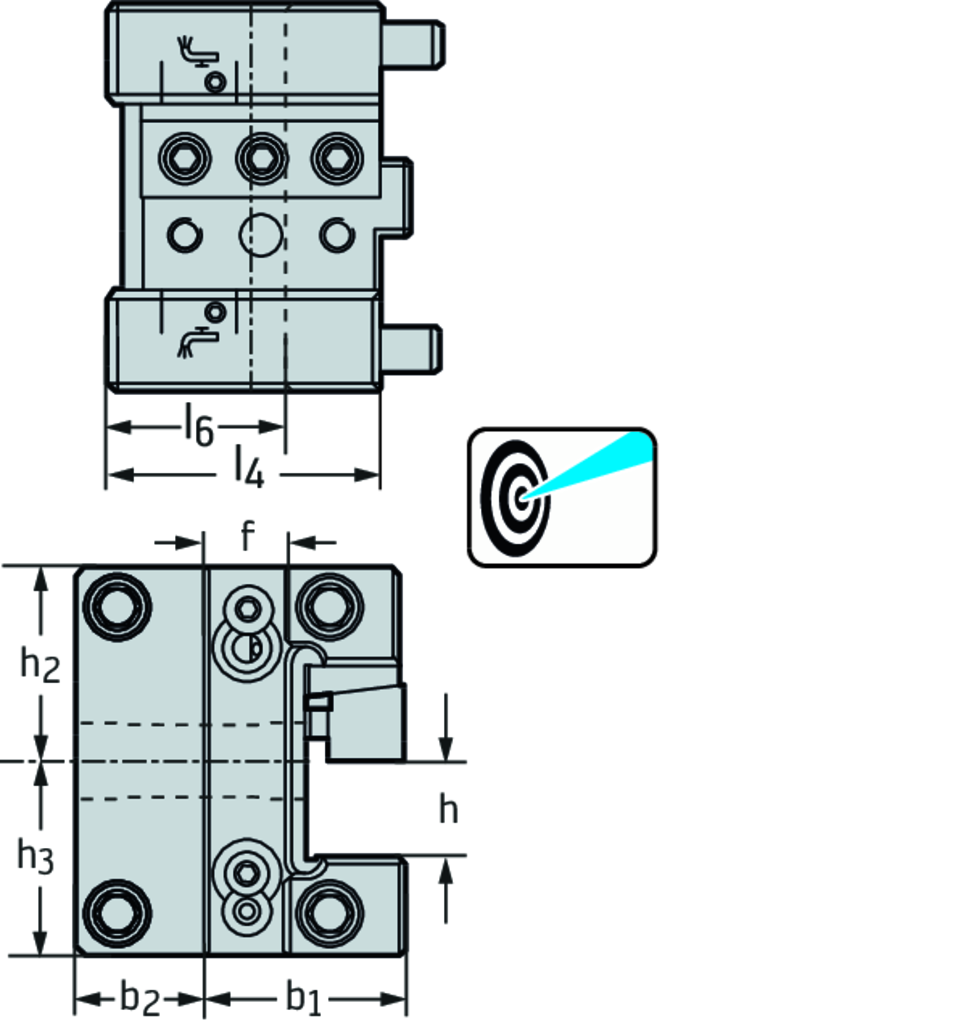

PRODUCT ATTRIBUTES
Tool designation (Designation) A2120-DO-25N-072-P
Shank diameter (d 1) DO-A
Height (h) 25 mm
Width (b 1) 51 mm
Radial width (b 2) 35 mm
Functional width (b 3) 31 mm
Functional width (f) 26 mm
Functional length (l 4) 72 mm
Length (l 6) 47 mm
Height (h 2) 51 mm
Height (h 3) 51 mm
weight of item 3 kg
Insert Shape A2
DESCRIPTION & FEATURES
Doosan adaptor – shank tools A2120-DO...-P • metric • neutral • 25 x 25 • Precision cooling • For Doosan machines
Article number (J21):
A2120-DO-25N-072-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body length 1 (B1):
47 mm
Protruding length (B3):
72 mm
Overall length (B4):
72 mm
Functional length (B71):
72 mm
Functional width (B73):
26 mm
Overall height (B81):
102 mm
Overall width (B91):
86 mm
Connection code type machine side (C11):
FLC
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
G0AN
Connection code type workpiece side (C51):
VKT
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
1
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
2516
Connection diameter min (C71):
251,6 mm
Connection diameter max (C72):
252,7 mm
Weight of item (D7):
3 kg
Cutting direction (E1):
Neutral
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Data chip provision (J7):
0
