Double-edged boring tool B3224.C8.430-500.Z2.CC12

Double-edged boring tool B3224.C8.430-500.Z2.CC12

€

3,332.00

EX VAT

€

4,098.36

INC VAT

Walter

Double-edged boring tool B3224.C8.430-500.Z2.CC12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

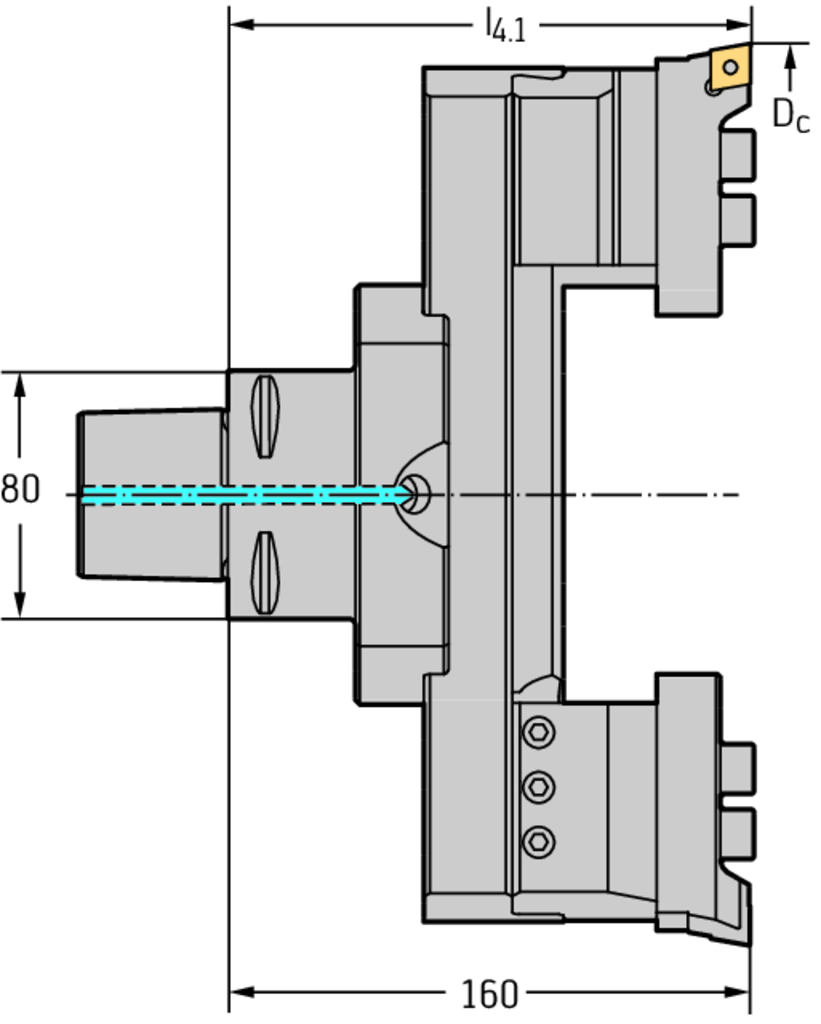

Tool designation (Designation) B3224.C8.430-500.Z2.CC12

Cutting edge diameter (D c) 430 - 500 mm

Connection diameter (d 1) 80 mm

Connection size code (d 1) C8

Functional length (l 4) 160 mm

weight of item 10 kg

Insert Shape B3

DESCRIPTION & FEATURES

Double-edged boring tool B3224 • Walter Capto^TM ISO 26623 • metric • Dc=430-500mm

Article number (J21):

B3224.C8.430-500.Z2.CC12

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

430 mm

Cutting diameter maximum (A12):

500 mm

Protruding length (B3):

160 mm

Overall length (B5):

208 mm

Functional length (B71):

160 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Connection diameter machine side (C3):

80 mm

Shank length (C4):

48 mm

Rotational speed maximum (D6):

750 1/min

Weight of item (D7):

10 kg

Tool cutting edge angle (E1):

90 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
