ER collet chuck with internal cooling AK300M AK300M.0.40.085.16ER collet chuck with internal cooling AK300M AK300M.0.40.085.16
ER collet chuck with internal cooling AK300M AK300M.0.40.085.16 ER collet chuck with internal cooling AK300M AK300M.0.40.085.16

ER collet chuck with internal cooling AK300M AK300M.0.40.085.16

€
309.00
EX VAT
€
380.07
INC VAT
Walter
ER collet chuck with internal cooling AK300M AK300M.0.40.085.16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

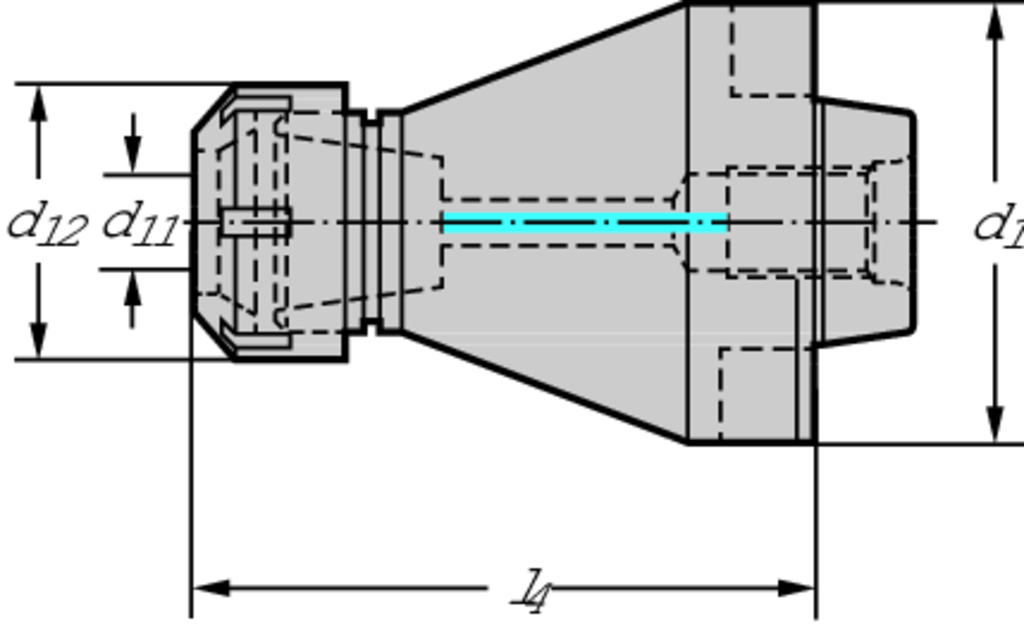

Tool designation (Designation) AK300M.0.40.085.16
Connection size code (d 1) NCT 40
Connection diameter (d 11) 1-16 mm
Body diameter (d 12) 42 mm
Maximum projection length (l 4) 85 mm
Collets ER25
weight of item 0,62 kg
Insert Shape AK
DESCRIPTION & FEATURES
ER collet chuck with internal cooling AK300M • metric • For ER collets in accordance with DIN 6499/ISO15488 • d1=40 • d11=ER25
Article number (J21):
AK300M.0.40.085.16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
42 mm
Flange diameter (A4):
40 mm
Diameter lock nut (A5):
42 mm
Body length 1 (B1):
85 mm
Protruding length (B3):
85 mm
Overall length (B4):
97 mm
Functional length (B71):
68 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Shank length (C4):
12 mm
Connection code type workpiece side (C51):
SZD
Connection code form at workpiece side (C52):
02
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0250
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
0,624 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Data chip provision (J7):
0
