ER collet chucks AK300M AK300M.0.40.080.16ER collet chucks AK300M AK300M.0.40.080.16
ER collet chucks AK300M AK300M.0.40.080.16 ER collet chucks AK300M AK300M.0.40.080.16

ER collet chucks AK300M AK300M.0.40.080.16

€
296.00
EX VAT
€
364.08
INC VAT
Walter
ER collet chucks AK300M AK300M.0.40.080.16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

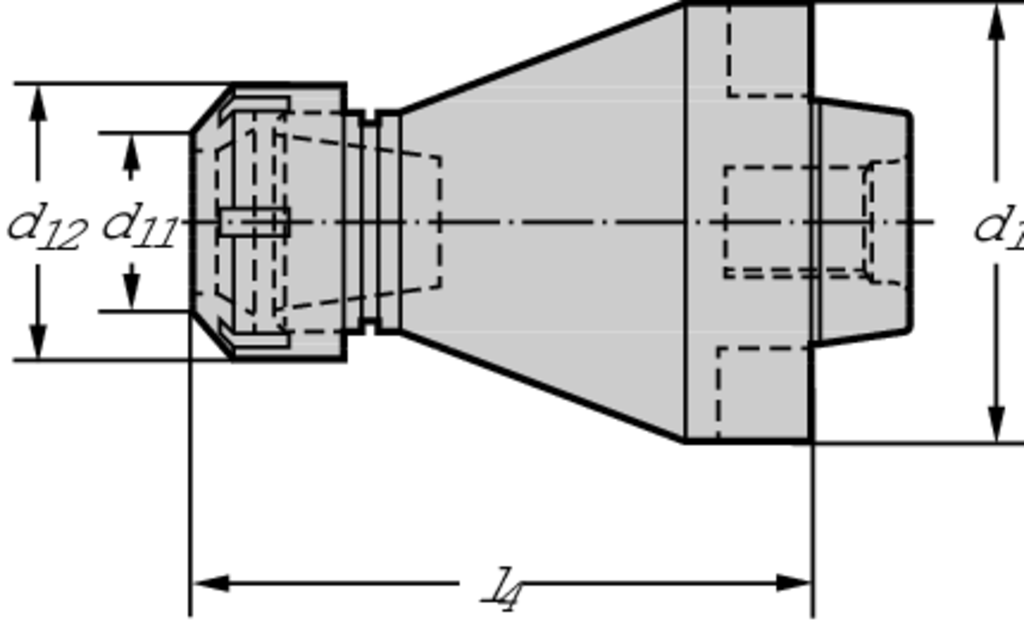

Tool designation (Designation) AK300M.0.40.080.16
Connection size code (d 1) NCT 40
Connection diameter (d 11) 1-16 mm
Body diameter (d 12) 42 mm
Maximum projection length (l 4) 80 mm
Collets ER25
weight of item 0,6 kg
Insert Shape AK
DESCRIPTION & FEATURES
ER collet chucks AK300M • metric • For ER collets in accordance with DIN 6499/ISO15488 • d1=40 • d11=ER25
Article number (J21):
AK300M.0.40.080.16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
42 mm
Flange diameter (A4):
40 mm
Diameter lock nut (A5):
42 mm
Body length 1 (B1):
80 mm
Protruding length (B3):
80 mm
Overall length (B4):
92 mm
Functional length (B71):
68 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Shank length (C4):
12 mm
Connection code type workpiece side (C51):
SZD
Connection code form at workpiece side (C52):
02
Connection code unit base workpiece side (C54):
8
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0250
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
0,595 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Data chip provision (J7):
0
