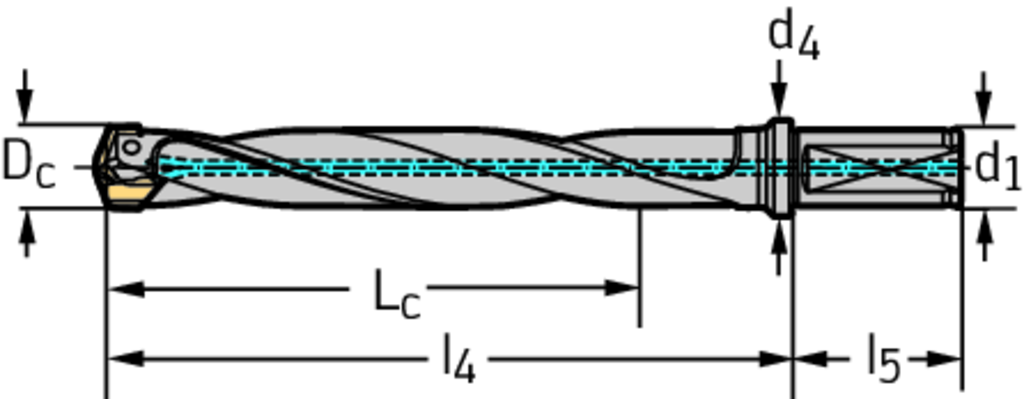

Tool designation (Designation)
D4140-07-30.00F32-K
Cutting edge diameter (D c)
30 mm
Cutting edge length (L c)
215 mm
Maximum projection length (l 4)
262 mm
Shank length (l 5)
60 mm
connection diameter (d 1)
32 mm
Flange diameter (d 4)
40 mm
weight of item
1,24 kg
Number of indexable inserts (No. of indexable inserts)
1
Seat size
30
Insert Shape
D4
