Face milling cutters for light metals F2250.B32.100.Z07.03

Face milling cutters for light metals F2250.B32.100.Z07.03

€

1,092.00

EX VAT

€

1,343.16

INC VAT

Walter

Face milling cutters for light metals F2250.B32.100.Z07.03

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

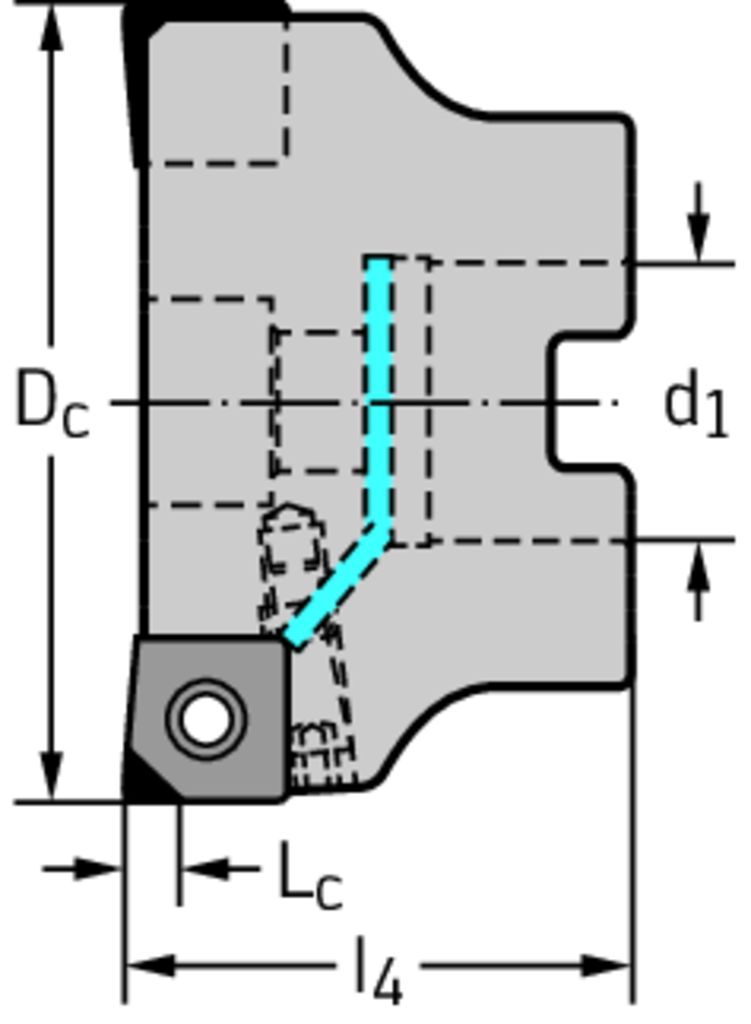

Tool designation (Designation) F2250.B32.100.Z07.03

Cutting edge diameter (D c) 100 mm

Shank diameter (d 1) 32 mm

Functional length (l 4) 50 mm

Cutting edge length (L c) 3 mm

Number of teeth (Z) 7

weight of item 1,3 kg

Number of indexable inserts (No. of indexable inserts) 7

Insert Shape F2

DESCRIPTION & FEATURES

Face milling cutters for light metals F2250 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • SP .. 1204 .. • Dc=100mm • Z=7

Article number (J21):

F2250.B32.100.Z07.03

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

100 mm

Body diameter (A3):

98,3 mm

Hub diameter (A4):

59 mm

Cutting depth maximum (B2):

3 mm

Overall length (B5):

50 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0320

Connection diameter machine side (C3):

32 mm

Adjustment property (D4):

Rotational speed maximum (D6):

17400 1/min

Weight of item (D7):

1,32 kg

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

0,9 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
