Face milling cutters F4047.B40.160.Z18.08Face milling cutters F4047.B40.160.Z18.08

Face milling cutters F4047.B40.160.Z18.08

1,402.00
EX VAT
1,724.46
INC VAT
Walter
Face milling cutters F4047.B40.160.Z18.08
P
H
M
S
K
N
O
= First choice
= Second choice
PRODUCT ATTRIBUTES

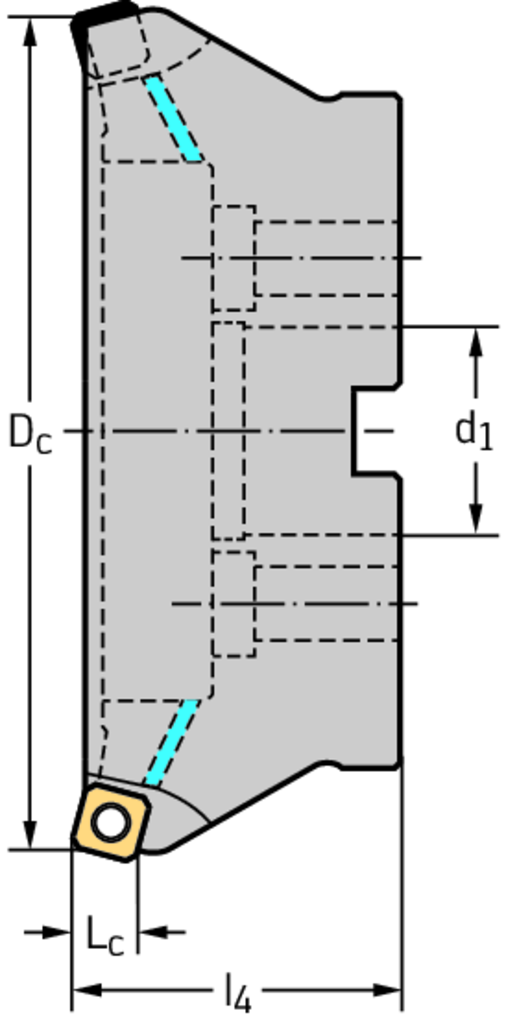

Tool designation (Designation) F4047.B40.160.Z18.08
Cutting edge diameter (D c) 160 mm
Shank diameter (d 1) 40/40 B mm
Functional length (l 4) 63 mm
Cutting edge length (L c) 8 mm
Number of teeth (Z) 18
weight of item 5,8 kg
Number of indexable inserts (No. of indexable inserts) 18
Insert Shape F4
DESCRIPTION & FEATURES
Face milling cutters F4047 • Parallel bore DIN 138 transverse keyway • κ=75° • metric • SN .. 1205 .. • Dc=160mm • Z=18
Article number (J21):
F4047.B40.160.Z18.08
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
1
Cutting diameter (A1):
160 mm
Cutting diameter maximum (A2):
164,29 mm
Body diameter (A3):
162,422 mm
Hub diameter (A4):
130 mm
Cutting depth maximum (B2):
8 mm
Overall length (B5):
63 mm
Connection code type machine side (C11):
SPK
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
3
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
9400 1/min
Weight of item (D7):
5,83 kg
Tool cutting edge angle (E1):
75 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Plunge depth maximum (E5):
1,8 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
18
Face effective cutting edge count (F22):
18
Face mounted insert count (G13):
18
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
